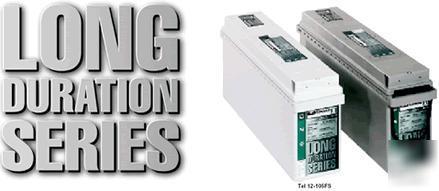

TEL12-105F Valve Reg. Lead Acid Battery Power Backup Valve Regulated Lead Acid Battery for communications standby power applications * Flame-arresting one-way pressure-relief vent for safety and long life. * Thermally welded case-to-cover bond to ensure a leak-proof seal. * Flame-retardant polypropylene case and cover compliant with UL94 V-0 with an Oxygen Limiting Index of greater than 28. * Absorbent Glass Mat (AGM) technology for efficient gas recombination 99% plus. * Thick positive plate design for maximum service float life ñ 10 year design life. * Front accessible threaded copper alloy terminals for ease of assembly and reduced maintenance. * Complies with UL1778, 924, 1989 and 94 V-0. * Can be used in any orientation. Upright, side or end mounting recommended. * Multicell design for ease of installation and maintenance. * Not restricted for air transport ñ Complies with IATA/ICAO Special Provision A67 * Not restricted for surface transport ñ classified as non-hazardous material as related to DOT-CFR Title 49 parts 171-189 * Not restricted for water transport ñ classified as non-hazardous material per IMDG Amendment 27. * Battery design allows for 48VDC configuration in a standard 23" relay rack in less than 10" height. * Minimizes battery interconnection cost and resistance with supplied copper connectors. * TEL12-105F overall length = 22.51" * TEL12-105FS overall length = 21.95" *All dimensions in inches and (millimeters). All dimensions are for reference only. Contact a C&D Representative for complete dimensional information. TEL12-105F/FS - Specifications 100 Ah @ 8 hour rate to 1.75 volts per cell @ 77° F (25° C) 98.1 Ah @ 10 hour rate to 1.80 volts per cell @ 20° C (68° F) Discharge; -40° F ( -40° C) to +160° F (71° C) Charge; -10° F (-23° C) to +140° F (60° C) (with temperature compensation) Nominal Operating Temperature Range +74° F (23°C) to +80° F (27° C) 13.5 to 13.8 VDC/unit Average @ 77° F (25° C) Recommended Maximum Charging Current Limit C/5 amperes (21.8 amps @ 100% depth of discharge) 0.5% RMS or 1.5% P-P of float charge voltage recommended for best results. Maximum voltage allowed = 4% P-P Maximum current allowed = 5.45 amperes RMS (C/20) Dynasty Telecom batteries may be stored for up to 6 months at 77°F (25° C) and then a freshening charge is required. For higher temperatures the time interval will be shorter. Inter unit connectors, racks and cabinet systems available. Threaded copper alloy insert terminal to accept 1/4-20 UNC bolt. Terminal Hardware Initial Torque Buss connection designed for 0.375" (1.0 cm) battery spacing. Batteries to be mounted with 0.3" (0.75 cm) spacing minimum and free air ventilation. Refer to battery installation and operating instructions for additional information. Specifications subject to change without notification. Manufacturer: TEL12-105F Valve Reg. Lead Acid Battery Power Backup This item is eligible for pickup unless otherwise stated. Powers Your Online Marketplace (all content is the responsibility of the poster) |
