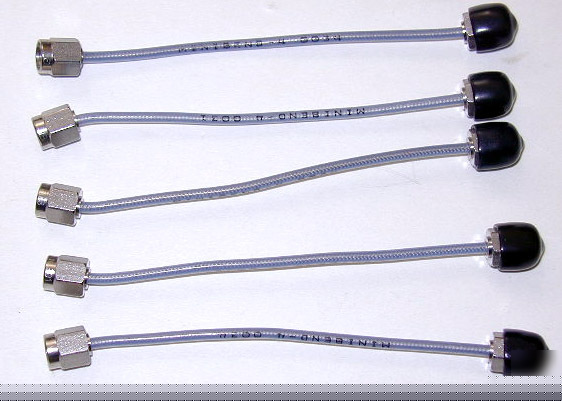

FIVE Astro Lab 4" MINIBEND-4 MICROWAVE COAX FLEXIBLE CABLES WITH SMA (NEW) This is a lot of 5 High Quality cables as pictured. Cables have SMA (male) connectors on each end and are 4" long. Minibend® is a true flexible coaxial cable assembly which is designed for use in low profile, internal, point-to-point interconnections between RF modules within communications systems. minibend® replaces small custom semi-rigid cable with standard flexible cables eliminating the need for predefined custom lengths and bend configurations. minibend® provides you with a preassembled and tested high performance, cost effective alternative in a variety of standard lengths. * Direct replacement for .086" semi-rigid cable * Precision stainless steel SMA plug connectors (Patented - US Patent Office) * Stock delivery on standard lengths * Eliminates need for costly right angle connectors * Guaranteed 15 lbs. pull force * Triple shielded for high isolation * Frequency range up to 24 GHz Phase Versus Flexure Reference Data Astrolab performed phase tests on hundreds of minibend® cable assemblies. Following are two standard Astrolab tests with the corresponding data. In test one, minibend–6 assembly’s were flexed 90° in a 0.25 inch radius directly behind the connector. In test two, minibend–16 assembly’s were flexed 180° with a 0.4 inch radius in the middle. Typical data is listed here: (all content is the responsibility of the poster) |
