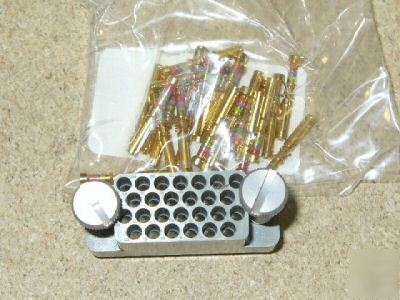

BODY STYLE - 24A STRAIGHT SHAPE W/SCREW LOCKS OVERALL LENGTH - 1.625 INCHES NOMINAL OVERALL HEIGHT - 1.531 INCHES MAXIMUM OVERALL WIDTH - 0.562 INCHES NOMINAL CONNECTOR LOCKING METHOD - JACKSCREW-SOCKET THREADED DEVICE TYPE - COUPLING FACILITY THREAD SERIES DESIGNATOR - UNC NOMINAL THREAD SIZE - 0.138 INCHES NOMINAL THREAD LENGTH - 0.320 INCHES POLARIZATION METHOD - JACKSCREW CONTACT POSITION ARRANGEMENT STYLE - BCAK 26 SINGLE MATING END INSERT MATERIAL - PLASTIC DIALLYL PHTHALATE SINGLE MATING END INSERT MATERIAL DOCUMENT AND CLASSIFICATION - MIL-M-14,TYPE SDG-F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END INCLUDED CONTACT QUANTITY - 26 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MAXIMUM CURRENT RATING IN AMPS - 7.5 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TYPE 1,GRADE C MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING ENVIRONMENTAL PROTECTION - HUMIDITY RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT TEST DATA DOCUMENT - 81349-MIL-C-28748 SPECIFICATION SPECIFICATION/STANDARD DATA - 81349-MIL-C-28748/4 GOVERNMENT SPECIFICATION III PRECIOUS MATERIAL AND WEIGHT - 0.026 GOLD GRAINS, TROY III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD III END ITEM IDENTIFICATION - AIRCRAFT TOMCAT F-14 (NON-CORE DATA) JACKSCREW TYPE AND LOCATION - FEMALE LEFT-HAND TOP AND FEMALE RIGHT-HAND TOP NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-28748/4 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M28748/4-E00S2A (all content is the responsibility of the poster) |
