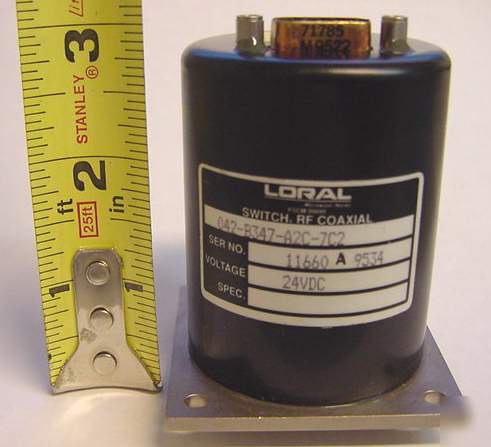

Loral RF Coaxial RF Microwave Switches NEW, excellent working condition AT&T lab technicians readied these for field installation but they were never used or installed. with the frame, wiring harness, fuse housing, etc. I will include 1 pin out chart with each lot of 100 switches. Each frame contains 2 switches so you will receive 25 frames The metal bracket these switches are mounted in can easily and quickly be removed by removing the four screws shown in the photos below. Photos below show switches removed from frames, this would need to be done by you and is for scale only! These RF switches were designed to be used at cellular telephone tower sites. They are excellent quality and cost the telephone company a fortune. They were made by LORAL. The switching voltages, etc are applied to a standard DB9 connector (same as computer serial port). Input/Output Connector: SMA female Coil Voltage: 24 VDC (20 to 28 VDC @ 150 ma) Switch Time: 15 ms-make before break Contact Ratings: 100 Watts DC to 3 GHz Standard DB-9 Control Connector (same as computer serial port). Pin-out included If you have additional information about the above item that is not included in this ad, then please email it to us (THANKS!). Please read EVERYTHING that is below Click the link below to get more information about us. (all content is the responsibility of the poster) |
