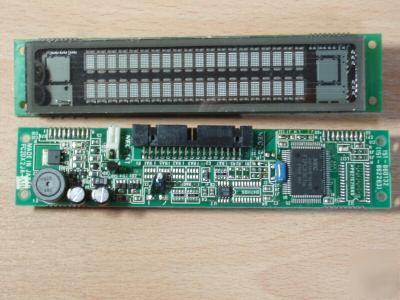

USED, IN GOOD WORKING CONDITION Compatible with Noritake CU20026SCPB-T30A, see the table below Replacement for CU209SCPB-T21A Replacement for CU209SCPB-T20A Replacement for CU20025SCPB-T20A Replacement for CU20026SCPB-T20A Replacement for CU40026SCPB-T20A P/S*= Parallel and Serial ** DP = Decimal Point, COM = Comma Temperature Range - Normal: -10°C~+65°C, Extended: -40°C~+85°C 2 line of 20 Characters 5mm High High Speed Parallel/Serial Interface High Brightness Blue Green Display OPTICAL and ENVIRONMENTAL SPECIFICATIONS Character Size/Pitch (XxY mm) 3.5 x 5.0/4.9 x 8.0 Dot Size/Pitch (XxY mm) 0.5 x 0.5/0.75 x 0.75 Luminance 1000 cd/m2 (291 Fl) Typ. Colour of Illumination Blue-Green (Filter for additional colours) The module includes the Vacuum Fluorescent Display glass, driver and micro-controller ICs with refresh RAM, character generator and interface logic. The high speed 8 bit parallel interface is 5V CMOS compatible suitable for connection to a host CPU bus. The asynchronous serial interface accepts baud rates up to 9,600. Two character font tables can be hardware selected. A user defined character and many control commands It has a chip on the back that reads: (all content is the responsibility of the poster) |
