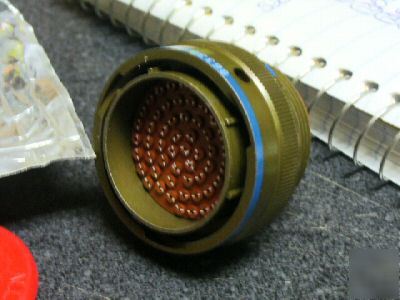

BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING OVERALL LENGTH - 1.420 INCHES MAXIMUM OVERALL DIAMETER - 1.777 INCHES MAXIMUM CONNECTOR LOCKING METHOD - BAYONET LATCH THREADED DEVICE TYPE - BACK SHELL THREAD SERIES DESIGNATOR - UNEF NOMINAL THREAD SIZE - 1.438 INCHES NOMINAL THREAD LENGTH - 0.290 INCHES SHELL MATERIAL - ALUMINUM ALLOY 6061 OR ALUMINUM ALLOY 380.0 OR ALUMINUM ALLOY A380.0 SHELL MATERIAL DOCUMENT AND CLASSIFICATION - QQ-A-367 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-591 FED SPEC 2ND MATERIAL RESPONSE OR QQ-A-591 FED SPEC 3RD MATERIAL RESPONSE SHELL SURFACE TREATMENT - CADMIUM AND CHROMATE SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY CONTACT POSITION ARRANGEMENT STYLE - CQAF 24-61 SINGLE MATING END INCLUDED CONTACT QUANTITY - 61 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING INCLUDED CONTACT TYPE - ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 1000.0 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING ENVIRONMENTAL PROTECTION - MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND THERMAL SHOCK RESISTANT AND CORROSION RESISTANT SPECIAL FEATURES - IN ORDER TO COMPLETE THE CONNECTOR ASSEMBLY,THE USER MUST OBTAIN/PROVIDE THE BACKSHELL; STANDARD VERSIONS MAY BE ORDERED AS NSN 5935-01-174-3669,P/N M85049/52-1-24W FOR THE STRAIGHT STYLE,OR NSN 5935-01-193-8434,P/N M85049/51-1-24W FOR THE RIGHT ANGLE STYLE TEST DATA DOCUMENT - 81349-MIL-C-26482 SPECIFICATION SPECIFICATION/STANDARD DATA - 96906-MS3476 GOVERNMENT STANDARD III PRECIOUS MATERIAL AND WEIGHT - 0.061 GOLD GRAINS, TROY III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-26482 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS3476W24-61P (all content is the responsibility of the poster) |
