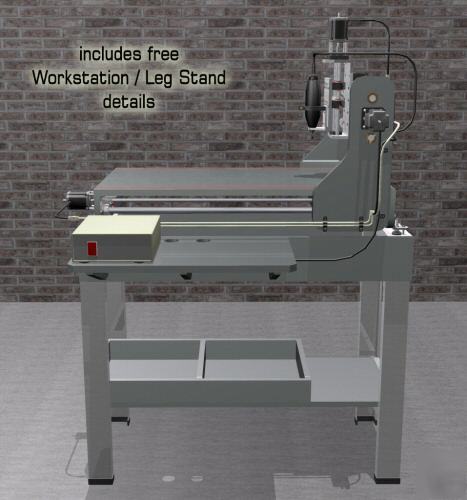

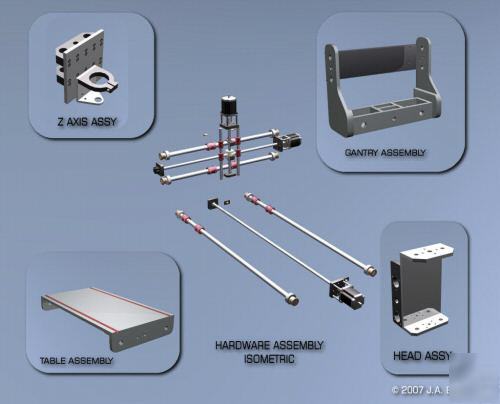

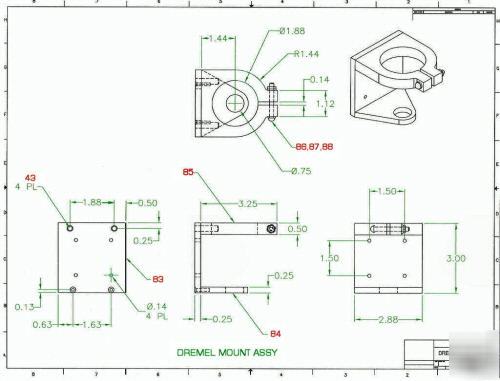

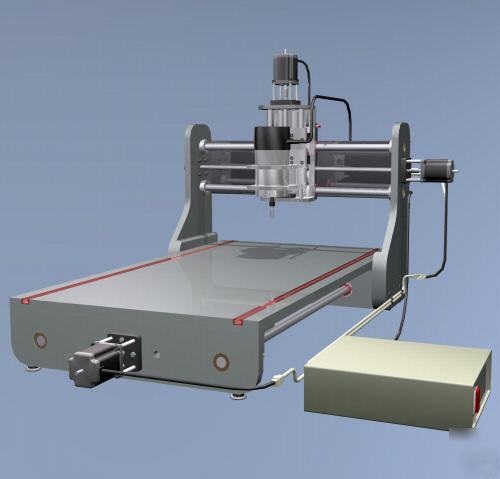

PICTURED WITH A XYLOTEX 3 AXIS DRIVE BOX COMPLETE W/ 425 OZ/IN MOTORS AND CABLES ______________________________________________________________________________________________________ CNC Router/Engraver Design Package II add affordable CNC to your Home Shop - great project for the Home Handyman easy to follow - professionally prepaired drawings This is the ultimate home shop tool and anyone with basic shop skills can add CNC capabilities to their home shop or business with this computer driven multipurpose tool. Make 3d sculptures from photos, furniture, 3d maps, signs, prototyping, engraving, multiple identical parts and complex 3D scrollwork. There are countless uses for hobbyists, model builders, furniture makers, sign makers or anyone who just likes to make things. This is a sturdy well-designed portable machine capable of quality work. It is not a flimsy foam cutter. It will do accurate engraving thru routing/cutting hardwoods and soft metals. Strong torque box design gantry. Made entirely of structurally strong 3/4" Baltic plywood, aluminum plate (see source below), HDPE bearing blocks (non-structural application) and standard engineering materials. You will not be overwhelmed with dozens of confusing drawings, only clearly defined fully referenced drawings and reference renderings. Effective cutting size is, 28" X 16" X 5". Compact and portable, 36" X 24" footprint. You can have all parts fabricated and begin assembling your machine in a couple of days. This is a modular design intended for home builders to easily follow and build. It has a complete parts list fully referenced. Design Notes guide you with important information in building. You don't have to be a professional woodworker or master machinist for a project like this. 4 easy to build sub-assemblies are clearly detailed in color-enhanced drawings. Producing accurate parts is simple and easy with the use of the easy-to-make drilling fixture (plans included). Links to popular CAD/CAM software & CNC hardware kits: DAK Engineering - TurboCNC, Ace Converter DeskKAM2000, DeskART, DeskEngrave Xylotex 3 Axis Drive Box Complete w/Cables STEPPERWORLD Complete 3 Axis Stepper System ARTSOFT - Mach 3, CNC Controller ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ New design CNC Router/Engraver plans with several significant improvements. 1. It is easier than ever to build. Ordinary Forstner bits and twist bits with a small drill press & table saw, plus common home shop tools. No machining. 2. The overall design is better. Full 1" added to X, Y and Z cutting axis. X=28" Y=16" Z=5" maximum workpiece size is 20" wide x 5" high x infinite length 3. New head design, still made with aluminum plate structure with HDPE bearing blocks to make fabrication 4. The building cost has been reduced by $100 over previous model. 5. Still, all parts are high quality, readily available, standard engineering materials. No MDF or other inferior nonstructural filler materials. No machining, no complex hard to make parts, all the parts you have to make can be simply cut on a table saw and finished with a drill press. Best of all, it is self aligning and rock solid 6. This is a machine that will perform well for many years with very little or no maintenance. Made with self-cleaning, self-lubricating, low vibration Frelon bearings makes it ideal for hard or soft woodworking, plastics, foam and soft metals. It will most likely become your favorite shop tool. 7. Although this design utilizes standard material sizes for cost effectiveness, the X and Y axis can be easily increased or decreased to 48" X 24" or 16" X 16". Don't be misled by claims of building a complete quality machine for under $500. Bottom price for a good 3 driver/motor kit and lead screws is around $500 alone. I built this machine using all new quality materials, a good quality 3 driver/425 ozin motor complete ready to use system for the higher price quoted below. You can reduce this price significantly by shopping around or using less expensive motor kits or you can spend more. It's up to you and your resources. This is a complete design package. All of the time consuming work is done for you, i.e. actual material sources and numbers, flat pattern drawings of all parts. You can start building immediately. I had all parts delivered to my door from Internet suppliers. The only gas I burned was for picking up a 5' x 5' sheet of Baltic plywood locally. Why spend several hundred dollars and a lot of your time building an inferior machine that requires a lot of fabrication and adjustment or one that is made of large unstable plastic sheets when for a few dollars more you can have a machine that will last for many years. This machine was intentionally designed with standard off the shelf quality materials and all flat pattern parts to make building and assembly easy and economical. You benefit from this extra effort by owning a quality end tool. It is redundant to claim a cutting accuracy since the stepper motors and driver software you use determine the accuracy, not the machine. This machine is rock solid and not affected by moisture & heat like MDF and HDPE. ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ Includes economical and sturdy leg stand/workstation details made with STURDI-BILT â„¢ Workbench Legs available from Quality printed and bound drawings and renderings, color enhanced, easy to read. (all content is the responsibility of the poster) |
GordonMcintosh@oklahomaselltoday.com (Gordon Mcintosh) for more information. All emails will be forwarded to the poster's actual email address.
