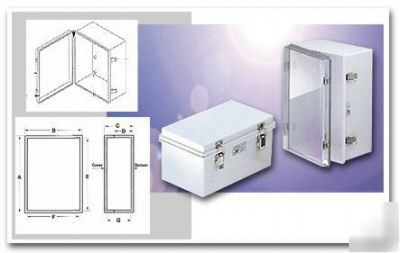

Item Description and Specifications BUD Industries, Inc. NEMA 4X Plastic Enclosure All of these gasketed enclosures have been tested and approved to UL508-4x specifications. All enclosures meet NEMA 1, 2, 4, 4x, 12, 13 and IEC529-IP65 requirements, which allows them to be used in many wet, dirty and/or corrosive environments. These are all indoor versions. Contact us for outdoor versions. Design Features:* Designed to IP65 of IEC529 and NEMA 1, 2, 4, 4x, 12, and 13 specifications. * UL Listed to UL508-4x requirements. * ABS/PC blended plastic enclosures are molded out of light gray material with UL94-5VA flammability rating. Suggested service temperature range -40C to +70C. * Clear doors, if applicable, are molded out of polycarbonate material with UL94-V0 flammability rating. * Dimensions: 11.80"x7.85"x7.09" * Dimensional Drawing (PDF): Click Here Moxley Electronics distributes industrial automation and safety equipment and provides engineering support for product lines including SICK, Mitsubishi, Sola, Larco, Mencom, Clairex Technologies, Conxall, Bud Industries, Saginaw, Volution, and Rees. Moxley Electronics is the Master Distributor of Skan-A-Matic Sensors. Moxley Electronics • 35 E. Uwchlan Avenue, Suite 322 • Exton, PA 19341 Telephone: (***) 594-9000 • Fax: (***) 594-9010 (all content is the responsibility of the poster) |
