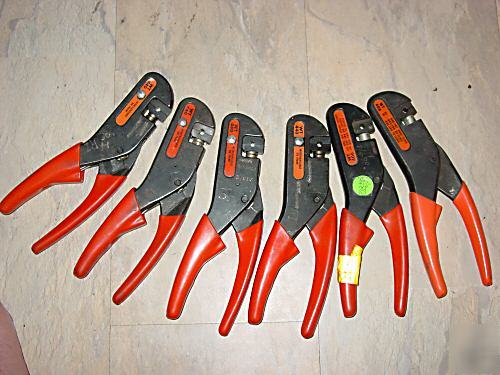

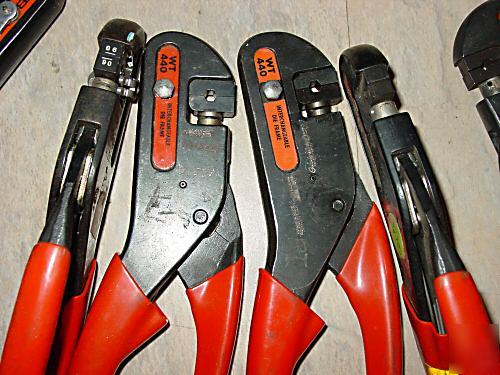

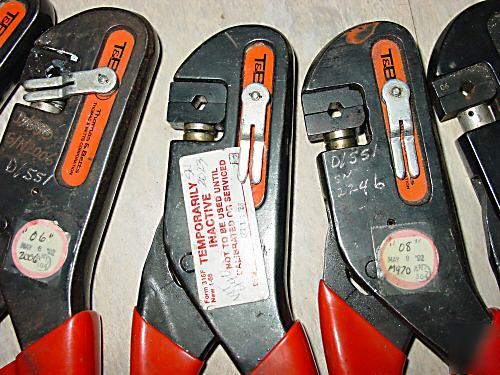

Shield-Kon (TM) CRIMPING TOOLs NOs. WT-440-06 or WT-406 By the Thomas and Betts (T & B) Co. Elizabeth, N.J. U.S.A. PARALLEL ACTION HEX CRIMPER HAND TOOLS For crimping shield terminating ferrules and coax connectors such as Shield-Kon Two-piece connectors. The outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp. See page 373 of this link for further description or page 376 for GSB/GSC series sleeve listing vs tool number. Used former Rockwell International tooling from the 80's and 90’s. Inactivated when the aerospace business slowed and now finally they have been surplused and are available to you at a tiny fraction of their original price! * WT-440-06 (initially 4 available) or WT-406 (initially 2 available) for use on GSC 187 194 199 yellow/red/tin 0.187/.194/.199 ID; .227/.226/.235 OD; -187 for RG180A/U cable (see Note 2) * I'll pick best ones I got first unless both types are available and you specify which type you want. The crimp size produced by each type is identical. * The WT-440 handles have dies which can be interchanged with other size dies while the WT-406 handle dies are not interchangable. * As of Oct. 2 '06 I have 6 WT-403's, 1 WT-408, and 4 WT-409's which I will be listing separately soon if not already. 1. GSC ferrule outer sleeve numbers correspond to MS21980 dash numbers. "MS21980E remains inactive for new design, however, the document is valid for use." (From this link) 2. Cables listed from MIL-F-21608E table V. MIL-F-21608 is spec for Ferrule, Shield Terminating, Crimp Style (Superceded BY SAE-AS21608 so you have to pay money to read it), however the MIL spec is still available here for free: MIL-F-21608E Compare New WT-440 handles at $1048 with 47 day lead time (Newark 46F3835). Die new $340 with 33 day lead time Newark 94F7398 . Good. Printing easily readable. Actions are smooth and dies line up well. Except as noted all engraved with dept and s/n's, all lubricated rachet mechanisms. Most grips are slightly loose. * No S/N WT-406 good shape, smooth action, no engraving * S/N 149 WT-406 has Green Jan 24 89 cal sticker and a band of yellow tape on grip, missing THomas & Betts sticker one side, action when fully closed dorked up requiring assistance to open, this will be last one to go and may discount it... * S/N 2246 WT-440-06 MAY 8 '92 inspection sticker, good smooth action * S/N 2023 WT-440-06 has "TEMPORARILY INACTIVE" sticker dated OCT 11 '88, good smooth action, * S/N 2006 WT-440-06 has a May 8 '92 inspection sticker, slight hesitation to close after fully open but else good smooth action, * S/N 2245 WT-440-06 has no stickers, good smooth action. * Parallel Straight line action hand tool * WT-440 frames have option for interchangeable steel dies and stowable wire guide. * WT-406 frames are marked with text describing applicable GSC ferrules and have non-interchangeable steel dies. * Shure-Stake (TM) Rachet mechanism: once pressing has commenced, the tool can be re-opened only after successful completion of the crimping cycle. * Closed gap at die edges is zero (they touch), open gap at edges is about 1/4 for the WT440 and 5/16 inches for the rest. * Dies are approx 3/8 thick. * Cushion-grip handles combine to provide greater operator comfort and efficiency. * Approx 8 1/4 long, 2 1/2 inches wide, 7/8 inch thick. * Weight approx 1 lbs 4 oz each. Packaging: None, you get just the tool. More Technical info from http:// /contractor/docs/shieldkon.pdf (all content is the responsibility of the poster) |
Sheri-Holloway@oklahomaselltoday.com (Sheri Holloway) for more information. All emails will be forwarded to the poster's actual email address.
