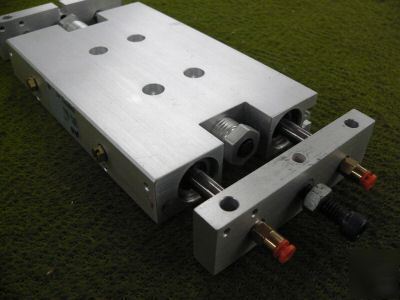

Slide with modular base, Ball bushings, Imperial dimensions, 16 mm od, 38 mm travel, Travel adjustement and shock pad in position 5, Ports in shafts located in position 5 http://litstore.phdinc.com/pdf.asp?filename=SM.pdf * Series SM Slides provide smooth linear motion at twice the thrust of a single bore cylinder. * Available in five bore sizes with a choice of three travel lengths to fit a wide range of applications. * Optional travel adjustments and shock absorbers can provide precise adjustment of travel. * Units with precision ball bushings provide more rigidity and carry a heavier load at higher velocities. * Units with polymer bushings cost less and provide quieter operation. * Available in both imperial and metric versions for applications in worldwide markets. * Fully integrated shock absorbers or travel adjustments with shock pads allow easy adjustment of travel without increasing overall package length. (External shock absorbers and travel adjustments available on size 8mm) * Slide body incorporates twin switch slots for flush installation of PHD's Series 6790 Reed and Solid State Switches. * All units are 8mm proximity switch ready using external mounting kits. This prevents flexing of the electrical connectors of the switches. * Modular mounting pattern on slide housing allows quick connect with Series STP slides without the need for transition plates. * Standard stainless steel fasteners eliminate the need for costly corrosion resistant options. Combined with -Q6 shaft option provides a completely corrosion resistant unit. * Optional porting through the guide shafts allows the housing to move without flexing the incoming air lines. (Not available on size 8mm) * Wider shaft spacing reduces the amount of deflection in roll moment applications. (all content is the responsibility of the poster) |
