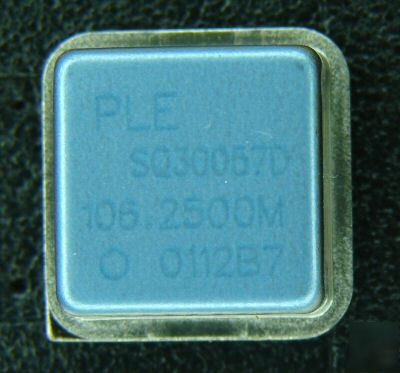

PLETRONICS SQ30057D - 106.25MHz Crystal oscillator You will not find the spec sheet on the PLETRONICS website, However PLETRONICS informed me that these meet or exceed the Electrical specifications of the SQ3345DV These are great parts for clocking Frequency multipliers and Comb Generators Overview of the SQ3345DV / SM7745DV specs • Direct interface with CMOS and TTL devices • Capable of driving up to 50pF capacitive loads • Half Size Thru-Hole DIP package • Has internal bypass capacitor on the Vcc lead • Has 5x7 mm LCC ceramic oscillator inside • Low jitter 0.6 pS RMS - 12 KHz to 20 MHz • Low phase noise -140 dBc @ 1KHz (all content is the responsibility of the poster) |
