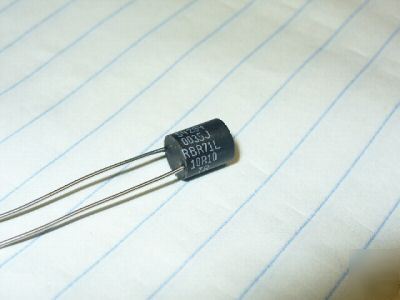

NSN # - 590ELECTRICAL RESISTANCE - 10.100 OHMS RESISTANCE TOLERANCE IN PERCENT - -0.010 TO 0.010 POWER DISSIPATION RATING IN WATTS - 0.125 FREE AIR AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 125.0 AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 145.0 TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS - -15.0 TO 15.0 TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS - -65.0 TO 145.0 INCLOSURE METHOD - ENCAPSULATED STYLE DESIGNATOR - 48 AXIAL TERMINALS ONE END BODY DIAMETER - 0.250 INCHES NOMINAL BODY LENGTH - 0.312 INCHES NOMINAL RELIABILITY INDICATOR - ESTABLISHED RELIABILITY FAILURE RATE LEVEL IN PERCENT - 0.010 TERMINAL LENGTH - 1.000 INCHES MINIMUM TEST DATA DOCUMENT - 81349-MIL-R-39005 SPECIFICATION SPECIFICATION/STANDARD DATA - 81349-MIL-R-39005/6 GOVERNMENT SPECIFICATION III END ITEM IDENTIFICATION - 1270-01-142-2855 III UNPACKAGED UNIT WEIGHT - 1.5 GRAMS (NON-CORE DATA) CUBIC MEASURE - 0.015 CUBIC INCHES NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-R-39005/6 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - RBR71L10R10TR 5-01-248-8352 (all content is the responsibility of the poster) |
