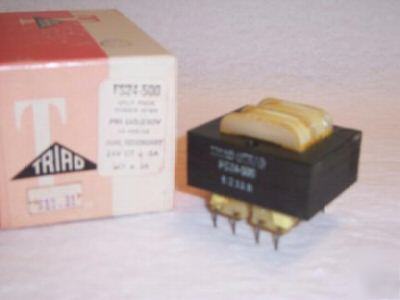

PC MOUNT: SPLIT PACK POWER TRANSFORMER DUAL PRIMARY AND DUAL SECONDARY TRIAD-UTRAD Brand Transformers Are A Division Of Magnetek, Inc. This Triad Model FS24-500 Transformer Is A Brand New (never used) Unit Left Over In Our Retail Store Inventory From The Mid 1980's. It Still Has The Original Retail Price Sticker That Shows It Was Selling For $11.31 More Than 20 Years Ago. The Triad SPLIT PACK Series Are Constructed Of A Three Flange Bobbin With Primaries And Secondaries Wound Side By Side For Low Capacitive Coupling. The Split Bobbin Design Eliminates The Need For Costly Electrostatic Shielding. PRIMARY: Series = 230VAC 50/60HZ / Parallel = 115VAC @ 50/60Hz SECONDARY: Series = 24V CT @ .500A / Parallel = 12V @ 1A CONNECTIONS: PC Mount Pins .020" x .234" NUMBER OF PINS: 8 ( 4 Primary Input, 4 Secondary Output ) DIMENSIONS: 1.437" High x 1.562" Wide x 1.875" Deep PIN SPACING: .4" (side to side) / 1.41" (primary to secondary) A Complete Data Sheet With Full Specifications Can Be Obtained Here Sign-Up For Our Store Newsletter and Receive email about New Items and Special Promotions And Check-Out our Marked-Down SALE Items here (all content is the responsibility of the poster) |
