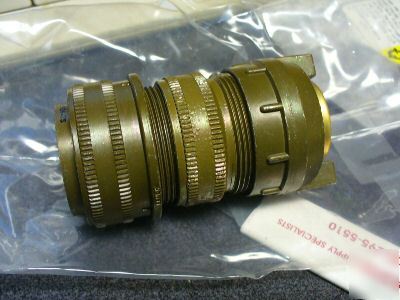

BODY STYLE - 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF BODY LENGTH - 2.790 INCHES NOMINAL OVERALL DIAMETER - 1.719 INCHES NOMINAL CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING NUT THREADED DEVICE TYPE - COUPLING FACILITY THREAD SERIES DESIGNATOR - UNEF NOMINAL THREAD SIZE - 1.500 INCHES CONNECTOR CABLE STRAIN RELIEF METHOD - CABLE CLAMP CABLE ENTRANCE DIAMETER - 0.750 INCHES NOMINAL SHELL MATERIAL - ALUMINUM ALLOY SHELL SURFACE TREATMENT - CADMIUM AND CHROMATE POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY CONTACT POSITION ARRANGEMENT STYLE - ASAH 24-7 SINGLE MATING END INCLUDED CONTACT QUANTITY - 2 SINGLE MATING END 1ST CONTACT GROUPING, 14 SINGLE MATING END 2ND CONTACT GROUPING CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS CONTACT MAXIMUM CURRENT RATING IN AMPS - 23.0 SINGLE MATING END 1ST CONTACT GROUPING, 13.0 SINGLE MATING END 2ND CONTACT GROUPING CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 500.0 SINGLE MATING END ALL CONTACT GROUPINGS CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 700.0 SINGLE MATING END ALL CONTACT GROUPINGS CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS CONTACT SURFACE TREATMENT - SILVER SINGLE MATING END ALL CONTACT GROUPINGS TERMINAL TYPE - CRIMP SINGLE MATING END ALL CONTACT GROUPINGS TERMINAL LOCATION - BACK SINGLE MATING END ALL CONTACT GROUPINGS III PRECIOUS MATERIAL - SILVER III PRECIOUS MATERIAL AND WEIGHT - 0.016 SILVER GRAINS, TROY III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES SILVER (all content is the responsibility of the poster) |
