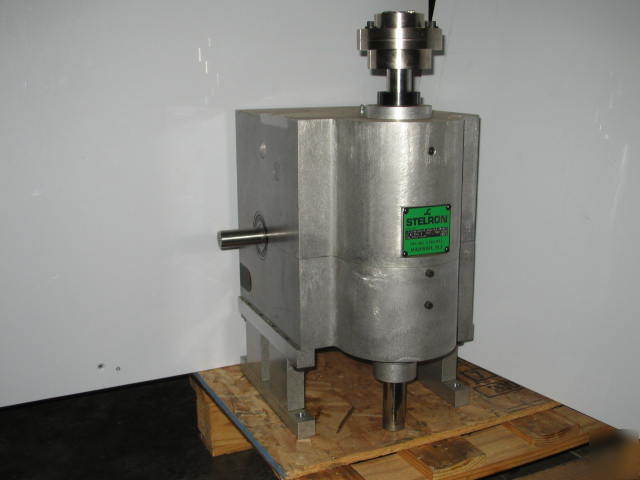

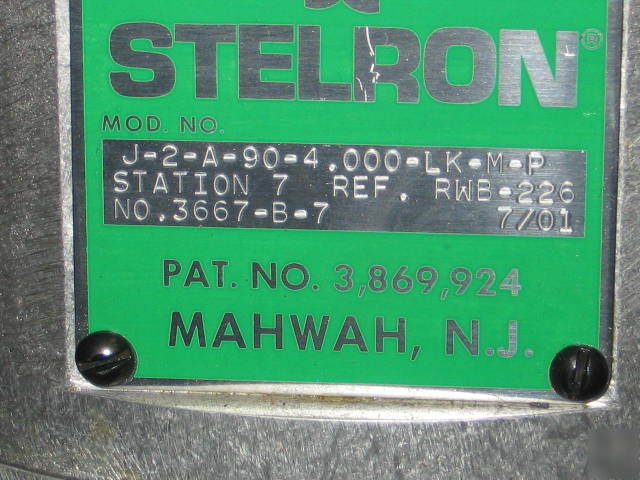

The Stelron TRANS-PART has been developed to provide smooth, positive, cam controlled Linear-Rotary motions to an external output shaft. A compact housing encloses the internal parts and provides for mounting on any of five different surfaces to suit a wide variety of installations. * Model #: J-2-A-90-4.000-LK-M-P * Shaft diameters: horizontal=1"; vertical=1¼" * Linear accuracy/repeatability: ±.005/±.003 * Rotary( @ 6" R.) accuracy/repeatability: ±.006/±.0025 To view a video of it working, click here: http:// /RAD%20Indexer%202.wvx To view a pdf file, click here: Website(This file is a PDF file. You will need a PDF Reader to view it. You can download one by clicking on one of the following: Adobe Acrobat Reader, Foxit PDF Reader.) (Please click on an image to enlarge it.) Telephone: (***)493-6305 Fax: (***)493-5782 Monday-Thursday 6:30am-5:00pm (CST) (all content is the responsibility of the poster) |
