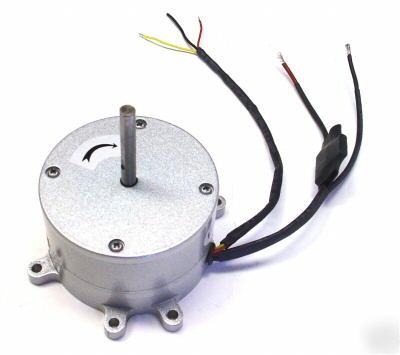

48v Brushless DC Motor Built-in Controller CW 48vdc This is a compact 48vdc brushless motor that outputs 200W of power with a controller integrated to the motor. 2 wires for the power lines and 3 thinner wires for connecting to a potentiometer. Motor is a Hall-sensor type. Motor is not reversible and reverse polarity would cause the damage to the motor. Specifications are listed below: Motor's Body Length: 2.5 inches Shaft Diameter: 8mm with one flat surface (D shaft) Housing Construction: Die-cast aluminum Mounting: Rear mount with 2-hole, 3-hole and 4-hole mounting patterns Speed at Rated Output: 2700 RPM Speed Control Type: 3 wires for 10k ohm potentiometer, yellow to wiper, red to return, black to ground (update: we will solder a potentiometer for you) Magnet Material: Rare-earth magnet (Neodymium) Protections: Current limiter, load-dump Wiring: Black to negative; red to positive Manufacturer: S&S Tech (sstechusa.com) (all content is the responsibility of the poster) |
