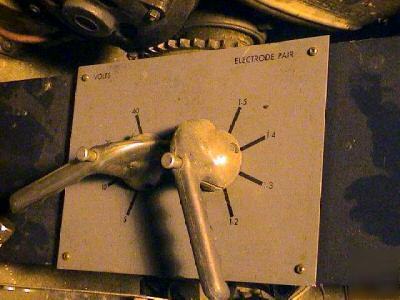

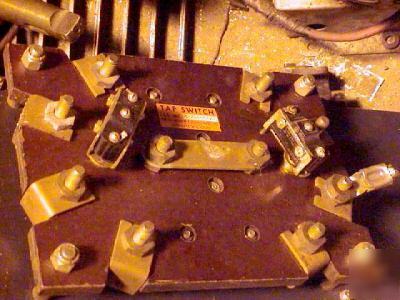

This is a new switch for transfer of power from various voltage taps from a transformer or load bank use. It was a spare part for a HOTROD crystalon furnace. Can be used to select power from up to 8 sources on the single output terminal. May also be used for transfer of up to 250 Volt DC. Obviously they are make before break and have a limit switch that actuates when the button is pushed to change tap. The furnace transformers it was used for were 480 volt and at highest tap it was rated 180 Amp at 480 VAC. pack charge is 12$ approx weight packed is 24Lb. we have a couple other tap switches too but no more 1 pole ones. check other store items. the photo is of a similar switch of exactly same construction. it is not the actual one. the one here is a single pole unit and is approx 12" square and 4" deep. the switch pictured is about 10 x 12. both units are of OFHC silver bearing copper and paper/linnen phenolic construction (all content is the responsibility of the poster) |
staciegrant@oklahomaselltoday.com (Stacie Grant) for more information. All emails will be forwarded to the poster's actual email address.
