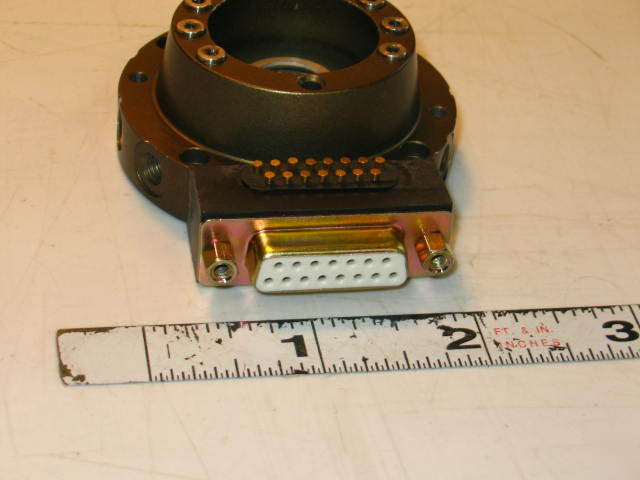

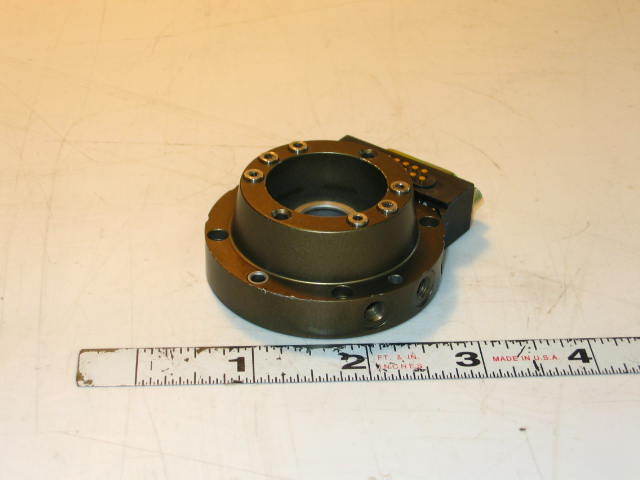

In our store is a Robohand Robotic Tool Changer (Automatic) (model #: RHC-1-T-OHCC-010) without a label. Facilitates the changing of end effector tooling on robots to accommodate the assembly of many different parts on the same assembly machine. Multiple pneumatic connections and optional electrical contacts make the RHC series an excellent choice. 1. Conical seat provides easy connection with tool adapter and increased payloads 2. Made from 7057-T6 aircraft quality aluminum, hardcoat to RC60. Teflon impregnated for maximum wear resistance 3. Failsafe locking mechanism maintains connection even with the loss of air 4. Unique latching mechanism pulls the tool plate into the body, preloading the tool plate for excellent rigidity * Max. Momentum: 14Nm (125in-lb) * For more information: Datasheet (This file is a PDF file, you will need a PDF Reader to view it, you can download one by clicking on one of the following: Adobe Acrobat Reader , Foxit PDF Reader.) (Please click on an image to enlarge it.) Telephone: (***)493-6305 Fax: (***)493-5782 Monday-Thursday 6:30am-5:00pm (CST) (all content is the responsibility of the poster) |
