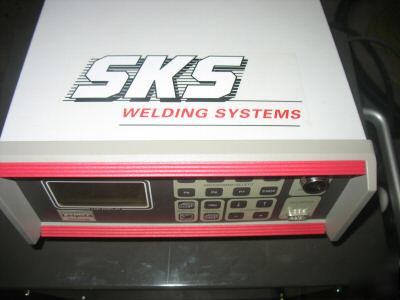

SKS Welding Systems and MOTOMAN robotec collaborated in the development of the innovative Synchroweld system solution. Synchroweld is their joint response to the demands of the automotive industry and its supplier industries for a welding process with process capability ... 1. More important uses in short * For up to 744 welding programs and for networking with a PC and other controllers * Universally suited to all common welding processes e.g. * GMAW Soldering as well as spray, short and pulse arc welding, specifically modified impulses * Creating, organizing and processing of welding programs as well as recording, documenting and analyzing measured values and welding results * Load, monitor and manage parameters via the PC * Enter additional information with the Q8Tool PC software * Program selection/changeover via angle transmitters * Control two wire feeders for one power source * An analog output program for controlling an external axis 2. A brief look at some special features and advantages * Documenting and reproducing welding programs (welding seam class for each component), e.g. as a basis for certification * As many programs as desired available on-line over a PC network * Programs can be optimized locally via process control or PC * Data backup of process control in the PC or system server * Memory of measured values recorded during welding, which automatically generate notes and alarm-messages for both the operators and the installation * All welding programs contain special monitoring parameters with assignable limit value set reactions * Storing of program modifications made by the operator * Interlinked parameters change simultaneously in the display (button operation); this interlinking is handled with specific settings * Alarm-messages traceable even after emergency stop * Nine operating languages selectable by pushing a button 3. Technical Characteristics Overview * SPW field bus nodes with T-branch for Q8p control looped through * Ethernet interface for networking galvanically separated on rear * USB Slave interface for service PC galvanically separated on rear * Synchronization interface for multi-process welding installations * All component assemblies, e.g. interface, wire feeder and power source in accordance with SPW 93 and SPW 99 standard * Extension component assemblies for external displays according to SPW 9x standard * Axis control for positioning unit according to SPWx standard (all content is the responsibility of the poster) |
