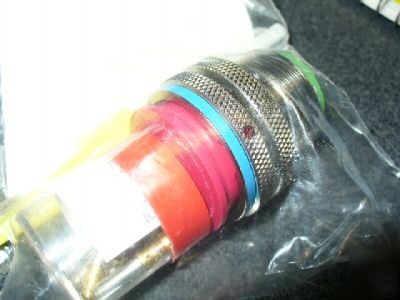

BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING OVERALL LENGTH - 1.420 INCHES MAXIMUM OVERALL DIAMETER - 1.391 INCHES MAXIMUM CONNECTOR LOCKING METHOD - BAYONET LATCH THREADED DEVICE TYPE - BACK SHELL THREAD SERIES DESIGNATOR - UNEF NOMINAL THREAD SIZE - 1.062 INCHES NOMINAL THREAD LENGTH - 0.290 INCHES SHELL MATERIAL - ALUMINUM ALLOY 6061 SHELL MATERIAL DOCUMENT AND CLASSIFICATION - QQ-A-367,T6 FED SPEC SINGLE MATERIAL RESPONSE POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY CONTACT POSITION ARRANGEMENT STYLE - AJAG 18-8,22-404 SINGLE MATING END INCLUDED CONTACT QUANTITY - 8 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 600.0 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT - GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT AND VIBRATION RESISTANT AND SALT WATER RESISTANT TEST DATA DOCUMENT - 81349-MIL-C-26482 SPECIFICATION SPECIFICATION/STANDARD DATA - 81349-MIL-C-26482 GOVERNMENT SPECIFICATION III PRECIOUS MATERIAL AND WEIGHT - 0.008 GOLD GRAINS, TROY III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILC26482 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS3475L18-8S (all content is the responsibility of the poster) |
