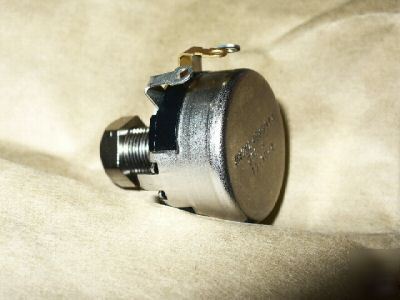

ELECTRICAL RESISTANCE PER SECTION - 500.000 OHMS SINGLE SECTION RESISTANCE TOLERANCE PER SECTION IN PERCENT - -10.0 TO 10.0 SINGLE SECTION STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION MAXIMUM STOP TORQUE - 128.00 INCH-OUNCES MAXIMUM STARTING TORQUE - 6.00 INCH-OUNCES POWER DISSIPATION RATING PER SECTION IN WATTS - 2.0 FREE AIR SINGLE SECTION AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 40.0 SINGLE SECTION AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 105.0 SINGLE SECTION BODY STYLE - 1B CYLINDRICAL BUSHING MOUNTED BODY DIAMETER - 1.100 INCHES MINIMUM AND 1.310 INCHES MAXIMUM BODY LENGTH - 0.570 INCHES MINIMUM AND 0.670 INCHES MAXIMUM MOUNTING BUSHING LENGTH - 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM SHAFT STYLE - 3C ROUND, SLOTTED SHAFT DIAMETER - 0.248 INCHES MINIMUM AND 0.251 INCHES MAXIMUM SHAFT LENGTH - 0.594 INCHES MINIMUM AND 0.656 INCHES MAXIMUM ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 290.0 MINIMUM AND 305.0 MAXIMUM ACTUATOR TRAVEL CONTROL FEATURE - STOPS EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION - 290.0 MINIMUM AND 305.0 MAXIMUM NONTURN DEVICE LOCATION - AT 9 OCLOCK NONTURN DEVICE RADIUS - 0.516 INCHES MINIMUM AND 0.546 INCHES MAXIMUM MOUNTING METHOD - LOCKING BUSHING SCREW THREAD SERIES DESIGNATOR - UNEF SCREW THREAD DIAMETER - 0.375 INCHES NOMINAL SCREW THREAD QUANTITY PER INCH - 32.0 TERMINAL TYPE AND QUANTITY - 3 TAB, SOLDER LUG TERMINAL LOCATION - RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE RELIABILITY INDICATOR - NOT ESTABLISHED TEST DATA DOCUMENT - 81349-MIL-R-19 SPECIFICATION SPECIFICATION/STANDARD DATA - 81349-MIL-R-19/2 GOVERNMENT SPECIFICATION III OVERALL LENGTH - 1.164 INCHES MINIMUM AND 1.326 INCHES MAXIMUM III OVERALL DIAMETER - 1.750 INCHES NOMINAL NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILR19-2 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - RA20LASB501A (all content is the responsibility of the poster) |
