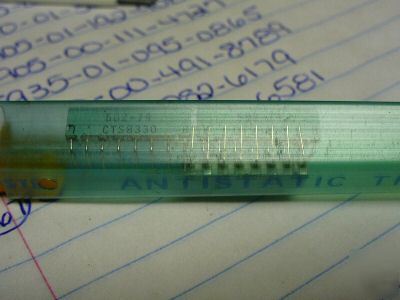

ELECTRICAL RESISTANCE - 100.000 OHMS, 2.000 KILOHMS, 221.000 OHMS, 825.000 OHMS IDENTICAL VALUE RESISTOR QUANTITY - 1 LOWEST RESISTANCE VALUE, 2 HIGHEST RESISTANCE VALUE, 1 1ST INTERMEDIATE RESISTANCE VALUE, 1 2ND INTERMEDIATE RESISTANCE VALUE RESISTANCE TOLERANCE IN PERCENT - -0.500 TO 0.500 POWER DISSIPATION RATING IN WATTS - 1.100 TOTAL NETWORK AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 70.0 AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 105.0 TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS - -100.0 TO 100.0 TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS - -55.0 TO 105.0 SCHEMATIC DIAGRAM DESIGNATOR - 4 BALANCED LADDER NETWORK INCLOSURE METHOD - ENCAPSULATED STYLE DESIGNATOR - 218 SINGLE INLINE BODY LENGTH - 0.800 INCHES MAXIMUM BODY WIDTH - 0.110 INCHES MAXIMUM BODY HEIGHT - 0.260 INCHES MAXIMUM RELIABILITY INDICATOR - NOT ESTABLISHED TERMINAL LENGTH - 0.180 INCHES NOMINAL (all content is the responsibility of the poster) |
