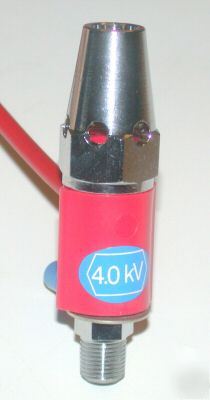

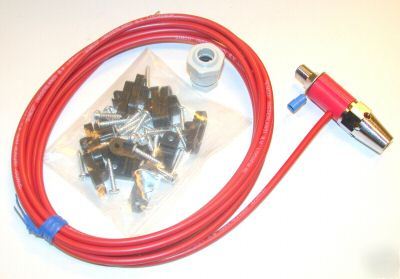

(4) BRAND NEW SIMCO HE STATIC CONTROL NOZZELS HE Static Control Nozzles are a current-limited pinpoint ionizing air source, which ensures operator and equipment safety. By limiting current at the nozzle tip, the HE can be used where contact by personnel is likely. HE nozzles can be mounted individually, in series, or on an air header bar. They operate on compressed air or nitrogen and produce a high-velocity stream of static eliminating air for cleaning and static control. Ideal for preventing double pickup at the feed pile on sheet-fed presses. * Line Voltage Requirements: 120 V, 60 Hz, 230 V, 50 Hz * Size (Individual Nozzle): 2 1/32 inches long by 15/32 inches diameter * Maximum Air Pressure (clean, dry air): 100 psi maximum * Air Flow: (at 30 psi) 2.8 SCFM * Air Supply Connection: 1/8 inch NPT on nozzle * Working Distance from substrate: Up to 6 inches * Operating Temperature Limit: 150° F (66° C) * Static Charge Discharge Time: 0.5 seconds at 6 inches at 30 psi (5000 V to 500 V) I will fully guarantee this item. Thanks for looking! If you have any question on this item please call us at 1-(***)-826-3433 (9 - 5pm Eastern). (all content is the responsibility of the poster) |
