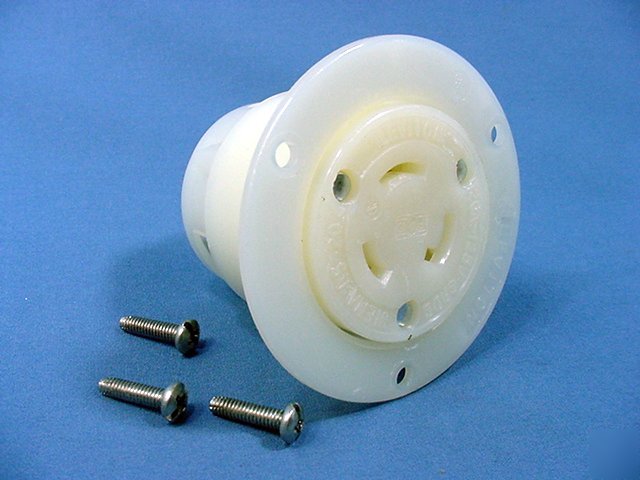

Leviton L5-20 Locking Flanged Outlet 20A 125V 2316 Leviton L5-20 Locking Flanged Outlet 20A 125V 2316 Industrial Specification Grade Leviton 2316 locking flanged outlet. Industrial Specification Grade, NEMA L5-20R, 2-pole, 3-wire, grounding, rated 20A 125V. Terminals accomodate #18-#10 AWG. Leviton's Industrial Grade locking plugs, connectors, and receptacles are definitely a step above the rest in quality. Each is individually packaged; packaging may differ from photo. Features include: * One-piece, rivetless, .035" thick brass contacts offer enlarged contact surface area, low heat, and long life * Cleat on contacts cuts oxidation when plug blade enters contact surface * Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire * Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position * Transparent wiring chambers provide a means of visual inspection of conductors and terminals * Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands * Color-coded terminal screws * Molded-in strip gage provides correct measurement for proper strip length of conductor * Captive terminal screws eliminate nuisance dropping and searching for missing screws * Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact * Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs. * Super tough nylon body resists damage from severe impact, abrasion, and chemical attack * NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification Click here to see matching L5-20 plugs, connectors & receptacles. This is New Old Stock and is returnable for any reason. (SKU #L2316-EA; 0.34 Pounds) Need Wallplates for Locking Receptacles? Click the links below: * 15A Wallplates (1.406" Diameter) * 20A & 30A Wallplates (1.60" Diameter) Additional locking devices and information: * Matching L5-20 Plugs, Connectors & Receptacles * See All Locking Plugs, Receptacles and Connectors * Leviton NEMA Chart w/ Corresponding Part Numbers Leviton L5-20 Locking Flanged Outlet 20A 125V 2316 Leviton L5-20 Locking Flanged Outlet 20A 125V 2316 Money Back Guarantee & Return Policy: * All items are guaranteed to be as described and in good working order unless stated otherwise in the description. If not we will refund/replace at our option. (more on our guarantee and return policy.....) * We are liquidators; we are not dealers or distributors of the items that we sell; We can make no guarantee that warranties on these items will be honored by the manufacturer; however, you can always rely on our 30-day money back guarantee. * We use a single set of photos for most items. Packaging may differ from photo, however what you receive should be accurately represented by what is in the photo. If it is not we will pay for its return. * Contact Information: Our Email address is: serena-lara@oklahomaselltoday.com . We respond to all e-mails. We have a full return policy so there is no reason for us to avoid your e-mails if you are having a problem. If you have not heard back from us be sure to check your junk e-mail folder. (more on contact information including addresses.....) (all content is the responsibility of the poster) |
