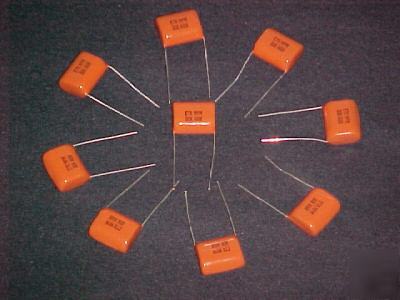

* ...Always a Money Back Guarantee CAPACITOR Specifications and Features * Premium quality - constructed with special series metalized polypropylene film dielectric MPM. * Electrode and lead spot welded, equivalent series resistance (ESR) minimized. * Excellent replacement for paper/wax capacitors in tube audio/amps/radios where extra high voltage protection in needed ie buffer capacitor in car tube radios. * Rated Voltage: 1600 Volts DC * Test Voltage: 160% of Rated Voltage for 60 sec (ie 2560 Volts for one minute) * Orange Epoxy dipped Orange Dips for superior heat, moisture and solvent resistance. * Non-Inductively Wound with Self-healing property * EXTRA Long (30mm) tinned copper radial lead wires for easy "under chassis" installation. * High reliability and excellent long term stability. * High corona starting voltage * Low DF and inherent temperature rise. High current rating and right dv/dt. * Flame retardant epoxy coating (UL-class 94V-O). * Space saving compact size. * Operating temp. range:-40 to +85 C. * Capacitance tolerance +/- 10%. * Capacitance Range: All sizes 0.001uF thru 0.1 * Dissipation Factor at 1KHz =< 1% * Insulation Resistance(min): 50000 Mohm at 25C. * Ideal for high frequency and high pulse circuits, such as switching, power supplies, test equipment, electric ballast, TV/Monitor resonance circuits, tube radios, old car radios. * ISO 9001 & 9002 certified. schematic_diagrams Capacitors & Schematics Name & Address: David Cantelon, 6 Ferncrest Gate, Scarborough, Ontario, Canada, M1W 1C2 (all content is the responsibility of the poster) |
