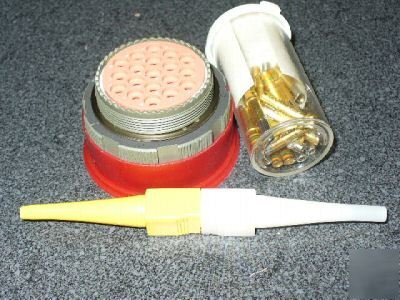

BODY STYLE - 15A ANGLE SHAPE WITH CABLE/CLAMP OVERALL DIAMETER - 2.469 INCHES MAXIMUM DISTANCE FROM CENTERLINE TO CONNECTOR END - 3.125 INCHES MAXIMUM DISTANCE FROM CENTERLINE TO CABLE END - 4.250 INCHES MAXIMUM CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING RING THREADED DEVICE TYPE - COUPLING FACILITY NOMINAL THREAD SIZE - 2.250 INCHES CONNECTOR CABLE STRAIN RELIEF METHOD - CABLE CLAMP CABLE ENTRANCE DIAMETER - 0.875 INCHES MINIMUM AND 1.250 INCHES MAXIMUM SHELL SURFACE TREATMENT - CADMIUM AND CHROMATE AND NICKEL SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQQ-P-416,TYPE 2,CLASS 3 FED SPEC 1ST TREATMENT RESPONSE AND QQ-P-416,TYPE 2,CLASS 3 FED SPEC 2ND TREATMENT RESPONSE POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY INSERT POSITION IN DEG - 280.0 CONTACT POSITION ARRANGEMENT STYLE - CBAB 36-10 SINGLE MATING END INSERT MATERIAL - RUBBER SILICONE CLASS Q SINGLE MATING END INCLUDED CONTACT QUANTITY - 48 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING INCLUDED CONTACT TYPE - ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MAXIMUM CURRENT RATING IN AMPS - 22.0 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 500.0 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 700.0 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING ENVIRONMENTAL PROTECTION - MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND SHOCK RESISTANT AND COLD RESISTANT AND HEAT RESISTANT AND EXPLOSION PROOF TEST DATA DOCUMENT - 81349-MIL-C-5015 SPECIFICATION SPECIFICATION/STANDARD DATA - 96906-MS3409 GOVERNMENT STANDARD III OPERATING TEMP RATING - -55.0 DEG CELSIUS MINIMUM AND 175.0 DEG CELSIUS MAXIMUM III PRECIOUS MATERIAL AND WEIGHT - 0.048 GOLD GRAINS, TROY III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-5015 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS3409DJ36A10PZ (all content is the responsibility of the poster) |
