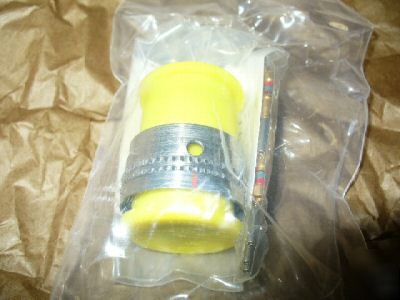

BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING OVERALL LENGTH - 1.375 INCHES MAXIMUM OVERALL DIAMETER - 1.141 INCHES MAXIMUM CONNECTOR LOCKING METHOD - BAYONET PIN THREADED DEVICE TYPE - BACK SHELL THREAD SERIES DESIGNATOR - UNEF NOMINAL THREAD SIZE - 0.812 INCHES NOMINAL THREAD LENGTH - 0.306 INCHES SHELL MATERIAL - STEEL CORROSION RESISTING SHELL SURFACE TREATMENT - PASSIVATE POLARIZATION METHOD - KEY, MULTIPLE KEY GROOVE CONTACT POSITION ARRANGEMENT STYLE - ARAC 14-15 SINGLE MATING END INCLUDED CONTACT QUANTITY - 15 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT AND VIBRATION RESISTANT AND SALT WATER RESISTANT TEST DATA DOCUMENT - 81349-MIL-C-26500 SPECIFICATION SPECIFICATION/STANDARD DATA - 81349-MIL-C-26500 GOVERNMENT SPECIFICATION III PRECIOUS MATERIAL AND WEIGHT - 0.015 GOLD GRAINS, TROY III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILC26500 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS24266E14B15SN (all content is the responsibility of the poster) |
