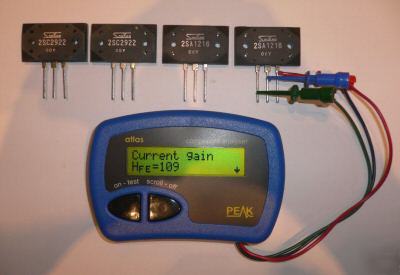

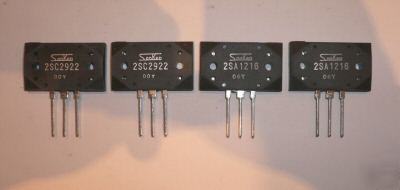

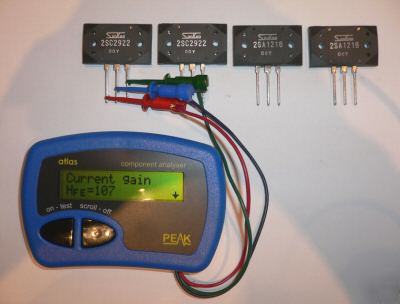

Set of 4 Sanken Audio Output Power Transistors 2SA1216 & 2SC2922 These parts are widely used in audio amplifiers as the output stage power transistors. This set of four will be suitable for a single channel Class AB output stage up to 200W into 4 ohms, or a Class A output stage up to 50W. As two stereo pairs they would be suitable for up to 100W into 4 ohms (50-60W into 8 ohms). Rating: Vce = 180 volts, Ic = 17 A, ft=40MHz, MT200 package. Hfe class 'Y' - typically 50-100 @ 5A (but all 4 parts will be selected for similar Hfe) They are brand-new current stock, and are guaranteed genuine Sanken parts For 2SC2922 datasheet: http://www.sanken-ele.co.jp/en/prod/semicon/ptr/ptr_u/ptr_26e.htm For 2SA1216 datasheet: http://www.sanken-ele.co.jp/en/prod/semicon/ptr/ptr_u/ptr_25e.htm There are many schematics available on the web and in print using these devices. For example Elektor magazine have used these over the years in several of their amplifier kits, and searching for '2SA1216' in google pictures produces many schematics. (all content is the responsibility of the poster) |
