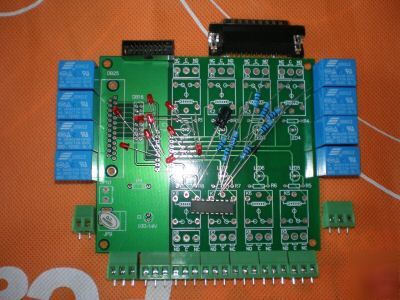

8 Channel Relay Driver Board KIT - PC AVR PIC 1. 1 x PCB, 1 x ULN2803A, 1 x 16 Pin Header 2. 8 x Relay, 8 x LED, 8 x 3 Pin Screw Terminal Block 3. 1 x 2 Pin Screw Terminal Block, 1 x DR-25 Male connector 5. CD Rom with User Manual, Schematic, Demo software & utilities * 8 Channel relay with NO, C, NC connections, switch upto 240V / 5A or 110V / 10A * LED relay status indicators * 3 Pin Screw terminal blocks for relay output * 2 Pin Screw terminal blocks for 12V DC power supply connection * Use ULN2803A for relay driver * Each relay is switched on or off by one bit of the output byte to the parallel printer port or 20 Pin IDC Header * DOS based utilities to control the relay board with batch file * Windows based program to test the relay board * Linux based program to use with Linux box * OR Write your own software with a DLL from HERE (all content is the responsibility of the poster) |
