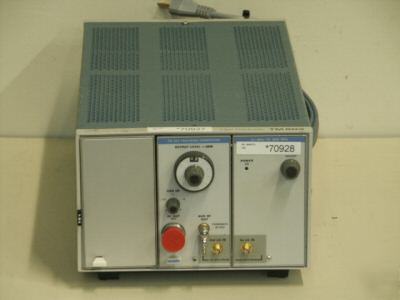

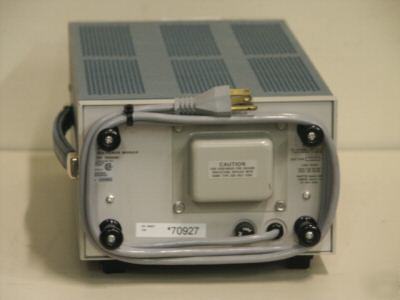

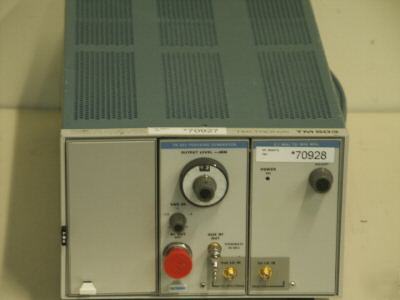

Tektronix TR503 With TM503 Mainframe Tracking Generator Module. Used with TEK 2750 and 490 Series Spectrum Analyzers, to provide con Stant level, calibrated RF sources for swept frequency tests to 1.8 GHz. The low residual FM of these systems enhances narrow bandwidth frequency response measurements. When used as a CW signal source with the analyzer in a manual mode, these systems have excellent frequency stability. The tracking generator sweep rates are controlled with the spectrum analyzer, and the output level is controlled from the tracking generator. The output frequency of the tracking generator is the same as the frequency of the analyzer at any instant of the sweep. TR503/All 490 and 2750 Series. Frequency Range - 100 kHz to 1.8 GHz. Output Level - (Max) 0dBm +0.5dB Range - 0 to 59 dB in 10 dB and 1 dB Steps. Flatness - Within +2.25 dB Max from 100 kHz to 1.8 GHz (Typically +1.5 dB) Output Impedance - 50 Ω Nominal VSWR 2:1 ot less to 1.8 GHz. Auxiliary Output - 0.1 V RMS into 50 Ω load 7 dBm minimum Spurious Output - Harmonic 20 dBc Nonharmonic 40 dBc. All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor. If in order to comply with our guarantee, we need to refund your money, you will get a FULL refund for the price of the unit... If you need to make use of the 15 days Guarantee - We will fix, or replace, your unit. In case every attempt to fix or replace it fails, we’ll refund your money. Be sure to add me to your favorites list! (all content is the responsibility of the poster) |
