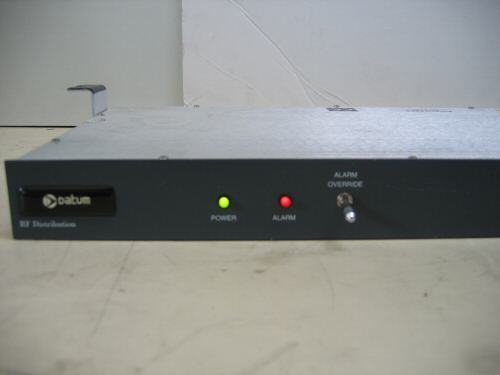

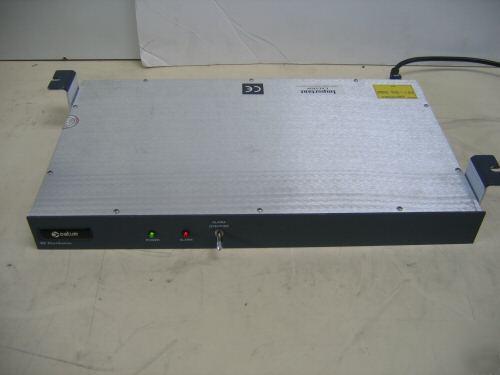

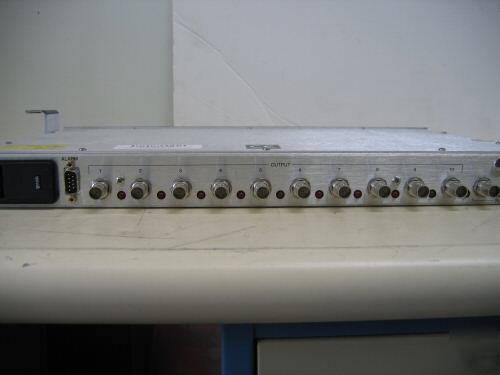

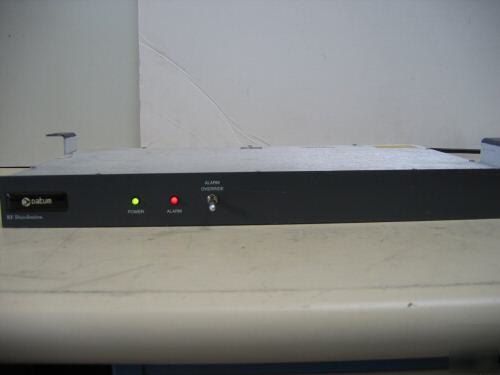

Datum 6502 RF Distribution Amplifier * Description: The Datum 6502 RF Distribution Amplifier packages the Datum-Timing, Test & Measurement (FTS) high end distribution technology in a convenient 1U high unit to distribute high quality RF sine wave signals. The unit houses a set of very low phase noise RF amplifiers while maintaining high isolation ( >100 dB ) between output channels. Up to ten units can be linked in a daisy chain to give up to 100 outputs, or each output of one unit can be used as a source for other Datum 6502 units, to give almost infinite expansion capability with virtually no signal degradation. The unit supports the G703/10 Telecom Signal format. * Ten Channel Output Distribution * Daisy Chain for more than 100 Outputs * Built-in Fault Protection * Frequency 0.1 to 10 MHz * Level 1 V rms (nominal) * Frequency 0.1 to 10 MHz * Level 1 V rms (nominal) * Harmonic Distortion < -40 dB * Non-Harmonic signals < -80 dB * Load Impedance 50 Ohms *Isolation between channel one to ten >130 dB * Additive SSB Phase Noise: * (1 Hz Bandwidth) Offset from carrier * Summary alarm indicates failure of any output signal. * Each Output & Main Red LED * Non-alarm condition Relay energized (fail safe) * Alarm O/P Disable Panel switch * Connector 9 pin D-male * Working Condition: Presumed Good but Untested * Other Comments / Notes: None * Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details). We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent. (all content is the responsibility of the poster) |
