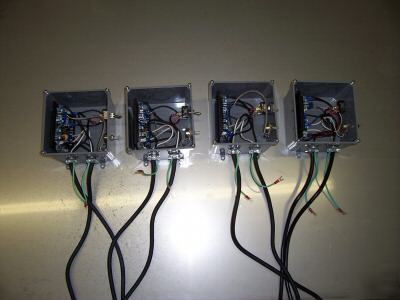

The KBIC-120 is a 115 VAC rated 9 Amps RMS @ 45C. The control is designed for 90 VDC PM, Shunt and AC/DC motors. It will control motors between 1/100-1/2 HP (1.0 HP w/aux. Heat sink) by inserting the proper Plug-in Horsepower Resistor®. Speed range is 50:1 with load regulation of 1%. Features include Auto Inhibit®, Voltage Following, MOV transient protection, 5K speed pot and trim pot adjustments for Min, Max, Accel, IR and CL. Options include Auxiliary heat sink, AC Line and Armature Fuse Kit, Barrier Terminal Board Grey control box set up for your motor ready to wire up the motor and run. Our standard is set up for 90 volts DC, fused, 110 volts, plugs into standard receptacle. On/Off switch and speed pot to control speed of the motor. We will set box up for 220 volts single phase in and 90 or 180 volts out. Other configurations available. The grey box on the turntable is controlling the rotation and speed of the top. Motor control box set up for 90 volt DC motor (all content is the responsibility of the poster) |
