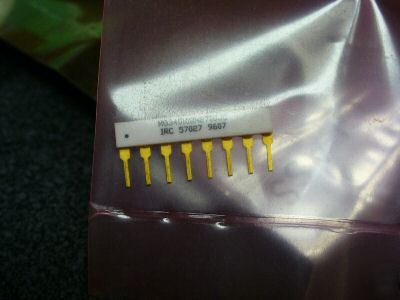

ELECTRICAL RESISTANCE - 270.000 OHMS IDENTICAL VALUE RESISTOR QUANTITY - 7 EACH RESISTOR RESISTANCE TOLERANCE IN PERCENT - -5.000 TO 5.000 POWER DISSIPATION RATING IN WATTS - 0.840 TOTAL NETWORK AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 70.0 AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 125.0 TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS - -300.0 TO 300.0 TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS - -55.0 TO 125.0 SCHEMATIC DIAGRAM DESIGNATOR - 3 LADDER NETWORK INCLOSURE METHOD - ENCAPSULATED STYLE DESIGNATOR - 218 SINGLE INLINE BODY LENGTH - 0.768 INCHES MINIMUM AND 0.798 INCHES MAXIMUM BODY WIDTH - 0.050 INCHES MINIMUM AND 0.103 INCHES MAXIMUM BODY HEIGHT - 0.177 INCHES MINIMUM AND 0.197 INCHES MAXIMUM RELIABILITY INDICATOR - NOT ESTABLISHED TERMINAL LENGTH - 0.125 INCHES MINIMUM AND 0.150 INCHES MAXIMUM TEST DATA DOCUMENT - 81349-MIL-R-83401 SPECIFICATION SPECIFICATION/STANDARD DATA - 81349-MIL-R-83401/8 GOVERNMENT SPECIFICATION NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-R-83401/8 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M8340108M2700JC (all content is the responsibility of the poster) |
