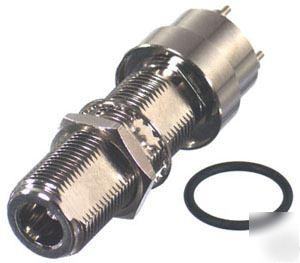

Model RFS-2030 is constructed of nickel plated machined brass with Teflon insulation and silver plated phosphor bronze contact. Bulkhead seal is inset GR70 nitrile O-ring. Connector is mounted using 4 posts with standoffs spaced .400 in. on center. Featuring voltage rating of 1,500 V peak and insulation resistance of 5 K milliohms max, RFS-2030 is designed for applications with frequency range of DC to 11 GHz. PCB mount with threads 1.65" [41.78mm] long. Designed for use in applications with a frequency range of DC to 11 GHz, the RFS-2030 has: voltage rating of 1,500 volts peak; insulation resistance of 5K milliohms Max.; dielectric withstanding voltage of 2,500 VRMS @ sea level; R.F. high potential withstanding voltage of 1,500 VRMS @ sea level, 5 MHz; temperature range of -65 to +165 Deg. C.; and interface is per MIL-STD-348A, Sec. 304.2. Item is non-returnable. All sales final. (all content is the responsibility of the poster) |
