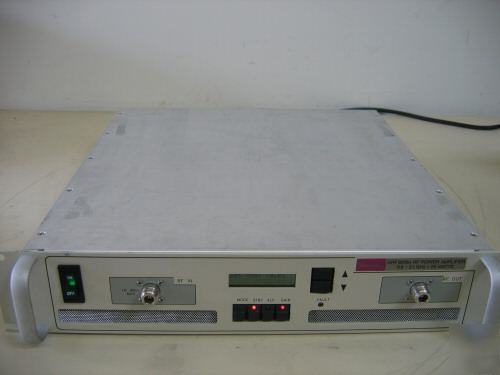

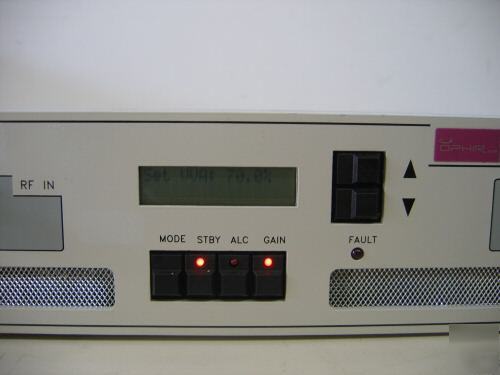

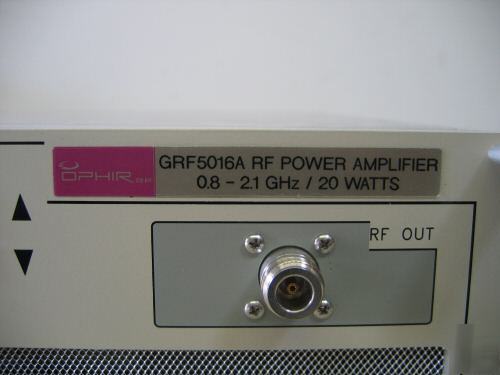

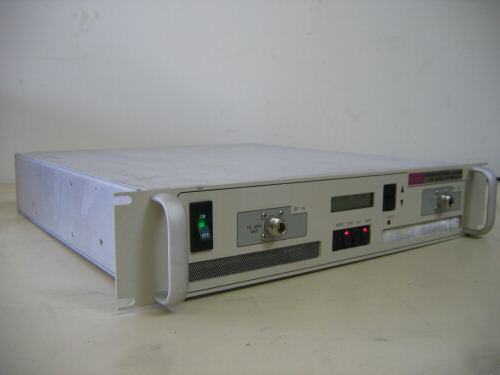

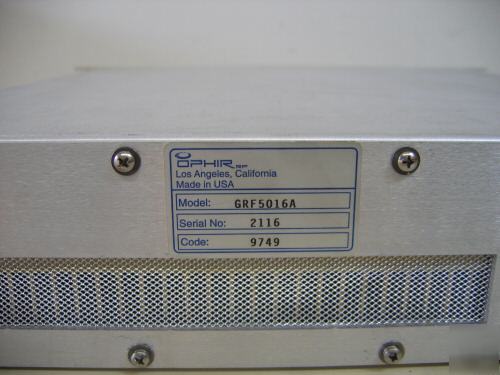

Ophir GRF5016A / 5016A RF Amplifier, 0.8 GHz - 2 GHz, 25 W * Description: The GRF5016A is a 25 Watt broadband amplifier that covers the 0.8 – 2.0 GHz frequency range. This small and lightweight amplifier utilizes Class A/AB linear power devices that provide an excellent 3rd order intercept point, high gain, and a wide dynamic range. Infinite Load VSWR and Thermal Overload circuit protections are engineered into the Ophir GRF5016A. Other features and specifications include: * Parameter Specification @ 25° C Frequency Range 0.8 – 2.0 GHz Saturated Output Power 25 Watts typical Power Output @ 1dB Comp. 20 Watts min Small Signal Gain +44 dB min Small Signal Gain Flatness + 1.5 dB max Harmonics -20 dBc typical @ 20 Watts Spurious Signals > -60 dBc typical @ 20 Watts Input/Output Impedance 50 Ohms nominal AC Input Power 220 Watts max AC Input 100 – 240 VAC, single phase RF Input Signal Format CW/AM/FM/PM/Pulse Class of Operation A/AB Mechanical Dimensions 9†x 3.5†x 18†Cooling Internal Forced Air * Cosmetic Condition: Very Good * Working Condition: Presumed Good but Untested * Other Comments / Notes: None * Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details). We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent. (all content is the responsibility of the poster) |
