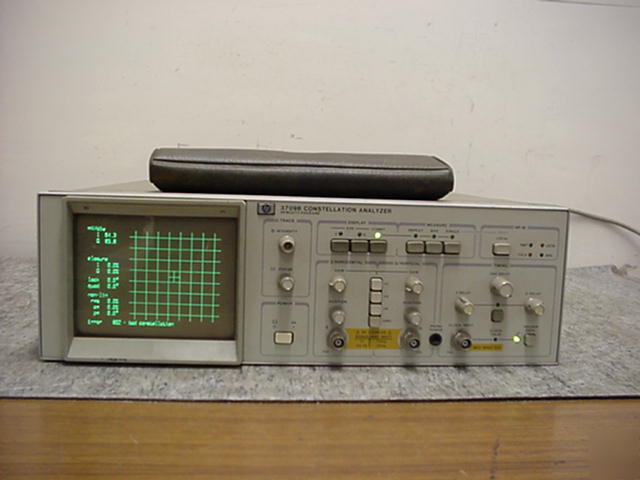

HP 3709B Constellation Analyser Option 130 The 3709B is used to characterize the performance and condition of digital radios both in-service and out-of-service by analysis of constellation patterns. In addition to displaying constellation patterns, the 3709B can measure the linear and non-linear distortions revealed by the patterns, and can provide a formatted report containing the pattern and measurement results. Troubleshooting, fine-tuning and preventive maintenance * Identifies digital radio impairments * Analyzes magnitude of distortions Constellations: Amplitude, closure, lock- and quad-angle errors, non-linear distortion (rms, am-am, am-pm) Modulation Schemes: QPSK, 16QAM, 64QAM, 256QAM, 9QPR, 25QPR, 49QPR & 81QPR. I and Q Signals: Any of the above schemes with signal levels in the range 30 to 400 mV p-p across the constellation * Clock: 1 MHz to 80 MHz (100 mV to 1 V p-p) Local Pick up is also available at our office in Clayton South VIC 3169 with 24 Hrs Prior Notice. Building Trust in Transactons (tm) If you have any questions please contact Lily or Phone (switch) +613 9558 0004 Ext : 138 Office Hours are 9.00AM - 5.00PM (all content is the responsibility of the poster) |
