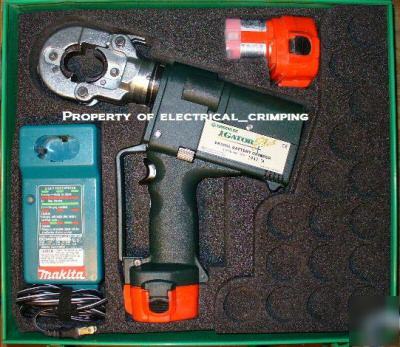

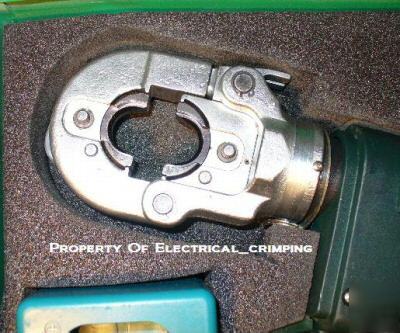

Greenlee EK22GL-11 6 Ton Battery Powered Crimping Tool Ram automatically retracts after the crimp is complete. Operator doesn’t need to push a retract lever. A two-speed pump advances the ram quickly to start the crimp. Crimp times range from about 5 to 7 seconds depending on the connector. Powerful 12 volt 2.0 Ah battery provides up to 120 crimps per charge. UL Classified and CSA Certified with Anderson, Blackburn, Burndy, ILSCO, Panduit, Penn-Union and T&B copper lugs and splices to 600 kcmil (MCM). UL & CUL classified with Anderson, Blackburn, Burndy, ILSCO, Panduit, Penn-Union, & Thomas & Betts aluminum lugs & splices to 350 kcmil (MCM). Flip-top style opens easily with a simple pull on the side piece and rotates 360°. Includes one-hour battery charger, steel carrying case and two batteries. Comes with a 120 volt battery charger. Equipped with die adapters for “W†type dies. The adapters are equivalent to “D3†dies. Capacity Color-coded copper lugs and splices, 600 kcmil (MCM). Color-coded aluminum lugs and splices, 350 kcmil (MCM). For capacity with other types of connectors Crimping Force 12,000 lb (53 kN) Length 12-3/8" (314 mm) Height 11-3/4" (298 mm) Weight 9.7 lbs. (4.4 kg) Battery 12 Volt 2.0 Ah NiCd Battery charge time 1 hour (all content is the responsibility of the poster) |
