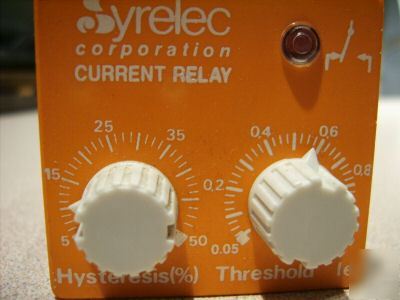

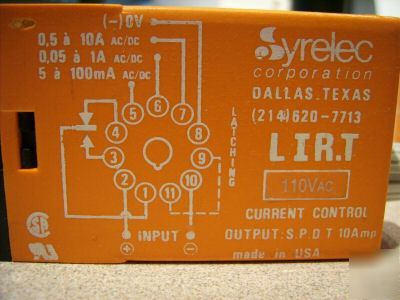

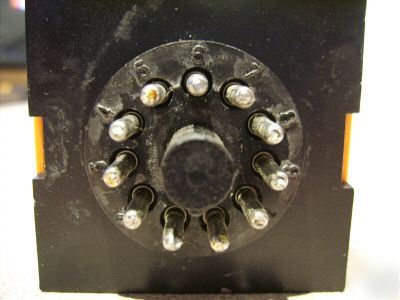

1. AC Current Control Without Latching: The output relay is energized when the current (peak current on AC) overshoots the level selected on the potentiometer. It de-energizes when the current falls below the normal current by 5 to 50% or when input power breaks. The hysteresis is controlled by a top mounted potentiometer and its selection does not change the chosen current level. 2. AC Current Control With Latching: The output relay is energized when the current reaches the selected value and stays latched. The contact between terminal B1 and B2 (or 11 and 9) should be opened or input power to the device interrupted to reset. In this case, it is preferable to reduce the hysteresis 5%. . . . . . . . . . . . . . . . . . . . . . . . . 24 VDC, 24, 48, 110, 220 VAC . . . . . . . . . . . 3 VA maximum CONTROL RANGE PERMITTED OVERLOAD CURRENT CURRENT RESISTANCE PERMANENTLY 1 sec Peak 5 to 100 mA 3.5 to 70.7 mA 1 ohm 1.5 V 5 A 0.05 to 1 A 0.035 to 0.707 A 0.1 ohm 5 A 17 A 0.5 to 10 A 0.35 to 7.07 A 0.01 ohm 15 A 55 A . . . . . . . . . . . 5 to 50% of input current . . . . . . . . . . . . . . ±2% at a constant ambient . . . . . . . . . . . . . . . . 100 ms On Make . . . . . . . . . . . . . . . . . SPDT Relay . . . . . . . . . . . . . . AgCdO . . . . . . . . . . . . . 10 A AC resistive 1 A DC inductive . . . . . . . . . 30 x 104 operations . . . . . . . . . . . 2 x 105 at 2500 VA resistive load . . . . . . . . . +14°F to + 140°F -10°C to +60°C . . . . . . . . . . . . . . . . . . . . . . 7 oz. (200g) 24 VDC power - the voltage and the measured current must be (all content is the responsibility of the poster) |
