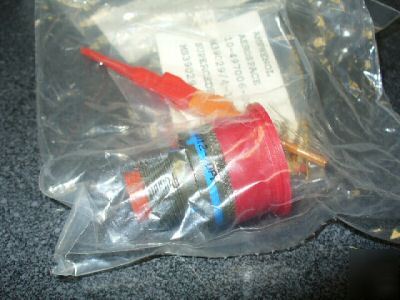

BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING OVERALL LENGTH - 1.230 INCHES MAXIMUM OVERALL DIAMETER - 1.043 INCHES MAXIMUM CONNECTOR LOCKING METHOD - BAYONET PIN THREADED DEVICE TYPE - BACK SHELL THREAD SERIES DESIGNATOR - UNEF NOMINAL THREAD SIZE - 0.750 INCHES SHELL MATERIAL - ALUMINUM ALLOY SHELL MATERIAL DOCUMENT AND CLASSIFICATION - QQ-A-591 FED SPEC SINGLE MATERIAL RESPONSE SHELL SURFACE TREATMENT - CADMIUM SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY CONTACT POSITION ARRANGEMENT STYLE - ALAC 12-10 SINGLE MATING END INCLUDED CONTACT QUANTITY - 10 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING INCLUDED CONTACT TYPE - ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 600.0 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT - GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TY 1,CL 1,GRADE C MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290,GRADE E FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING ENVIRONMENTAL PROTECTION - MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF SPECIAL FEATURES - IN ORDER TO COMPLETE THE CONNECTOR ASSEMBLY,THE USER MUST OBTAIN/PROVIDE THE BACKSHELL; STANDARD VERSIONS MAY BE ORDERED AS NSN 5935-01-184-7189,P/N M85049/52-1-12W FOR THE STRAIGHT STYLE,OR NSN 5935-01-181-6652,P/N M85049/51-1-12W FOR THE RIGHT ANGLE STYLE TEST DATA DOCUMENT - 81349-MIL-C-26482 SPECIFICATION SPECIFICATION/STANDARD DATA - 96906-MS3476 GOVERNMENT STANDARD III PRECIOUS MATERIAL AND WEIGHT - 0.010 GOLD GRAINS, TROY III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-26482 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS3476W12-10PW (all content is the responsibility of the poster) |
