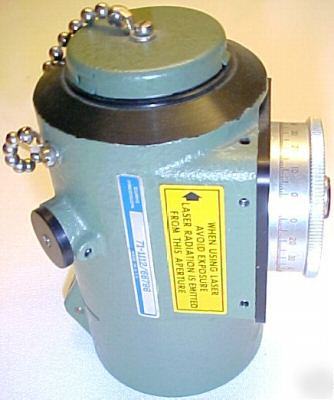

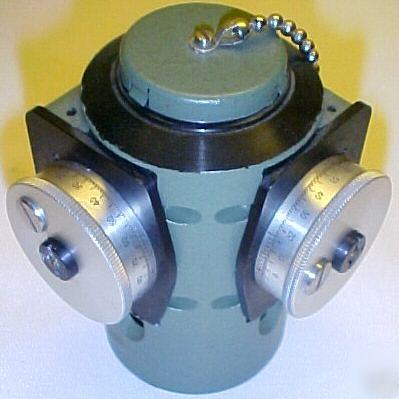

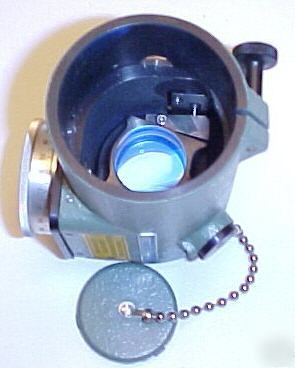

The 1112 coordinate optical micrometer measures vertical or horizontal displacement from the instrument's line of sight. Its range is ±0.100". A uniformly graduated main scale reads directly to ±0.001", with red and black numbers to indicate the positive and negative sides of the zero reference mark. A vernier is provided to allow readings to 0.0001". The 1112 has a dustproof cover glass as well as a split clamp for tool-free mounting on the instrument's barrel. This micrometer may be adjusted and calibrated without removal from the instrument. Originally made for use specifically with the 2615 Autocollimating Alignment Laser, this coordinate micrometer will fit all standard 2¼" diameter instrument barrels. Use this to convert your Brunson 81 or 82 Alignment Scope to a Model 83, or convert your K&E 71-2062 to a 71-2022. (all content is the responsibility of the poster) |
CWatts@oklahomaselltoday.com (Clarence Watts) for more information. All emails will be forwarded to the poster's actual email address.
