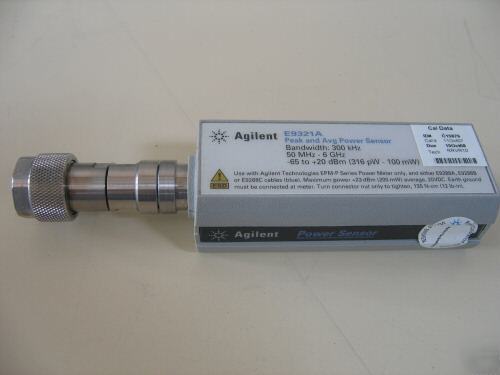

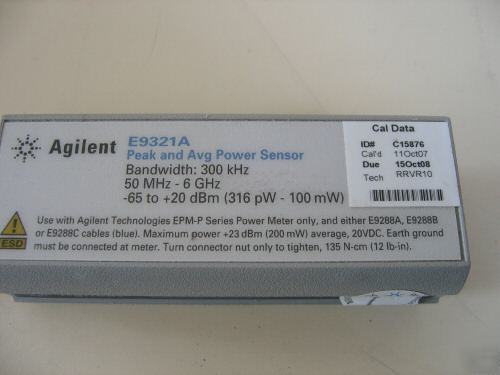

Agilent / HP E9321A Peak & Average Power Sensor, 50 MHz to 6 GHz, -65 to +20 dBm, Type-N (m) 300 kHz Modulation Measurement BW * Description: The Agilent (HP) E9321A power sensor has two measurement paths, one for peak and time-gated measurements (a fast sampled path) and another for stable, low-level average power measurements. The E9321A power sensor has a frequency range of 50 MHz to 6 GHz to cover most wireless communications applications. Using this one sensor, you can measure W-CDMA, CDMA and TDMA as the sensor provides a medium and low modulation bandwidth setting, selectable by the meter. You can select modulation bandwidth required for their application, while maintaining the maximum dynamic range. Other features include: * 300 kHz video bandwidth, ideal for GSM, EDGE and NADC applications * Fast measurement speed, up to 1000 corrected readings per second, via the GPIB * Calibration factors, linearity, temperature and bandwidth correction stored in EEPROM * Precision type-N connector as standard * Cosmetic Condition: Excellent * Working Condition: Came directly out of working lab. Cal sticker expires 10/15/08 * Other Comments / Notes: None * Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details). We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent. (all content is the responsibility of the poster) |
