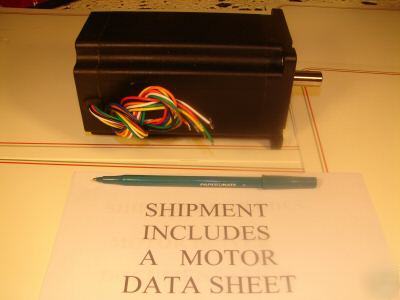

Brand New NEMA 34 1810 oz-in stepper motor Includes documentation and email setup support Suitable for dirving mill tables with 1-1/4" to 1-3/8" drive screws Single Shaft Front shaft=1/2" x 1-3/16" . Bipolar series Volts=.6.6, Amps=4.4, Ohms=1.5, Holding torque= 12.8 Nm. 0r 1810 oz-in Bipolar parallel Volts=3.34, Amps=8.8, Ohms=0.38 Holding torque= 12.8Nm. or 1810 oz-in Unipolar Volts=.65, Amps= 6.2, Ohms=0.75, Holding torque= 9 Nm or 1275 oz-in Body Diameter= 85.65 mm or 3.36" (all content is the responsibility of the poster) |
