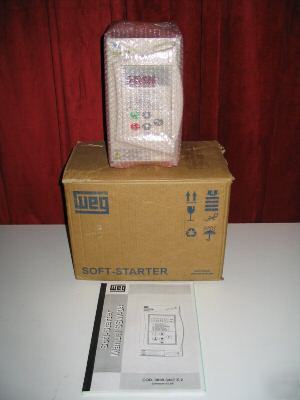

WEG SSW-04 SSW040163D1 Series Soft Starter ::Brand New In Box:: WEG SSW-04 SSW040163D1 Soft Starters are built for ruggedness and reliability, providing a complete and cost effective package. The control, which is a microprocessor base allows for easy start-up and superior motor protection. With the specific pump control which prevents running pumps at no load and also eliminates pipeline water hammer. * 208-440V and 460V-575V, 50/60Hz input power supply * Duty cycle: 300% of full load current during 20 seconds every 6 minutes * Four programmable isolated digital inputs (24 VDC) * Two programmable relay outputs (1 Amp - 250V) * One programmable analog output * Soft starter over temperature and external fault * Acceleration and deceleration independently adjustable ramps * Auto-reset and fault history * Motor Amps , kW, kVA, PF and Volts * 104ºF (40ºC), 3300 ft (1000m) altitude, 90% non-condensing humidity Soft Starter Max. Cont. AMPS: 17.6 Dimensions H x W x D: 11 x 6 x 8 HP rating based on "average FLA values". Use as a guide only. Motor FLA may vary with speed and manufacturer. Always compare motor FLA to nominal AMPS and Max Continuous AMPS of starters. 120V Control and Blower Power Supply required. (all content is the responsibility of the poster) |
