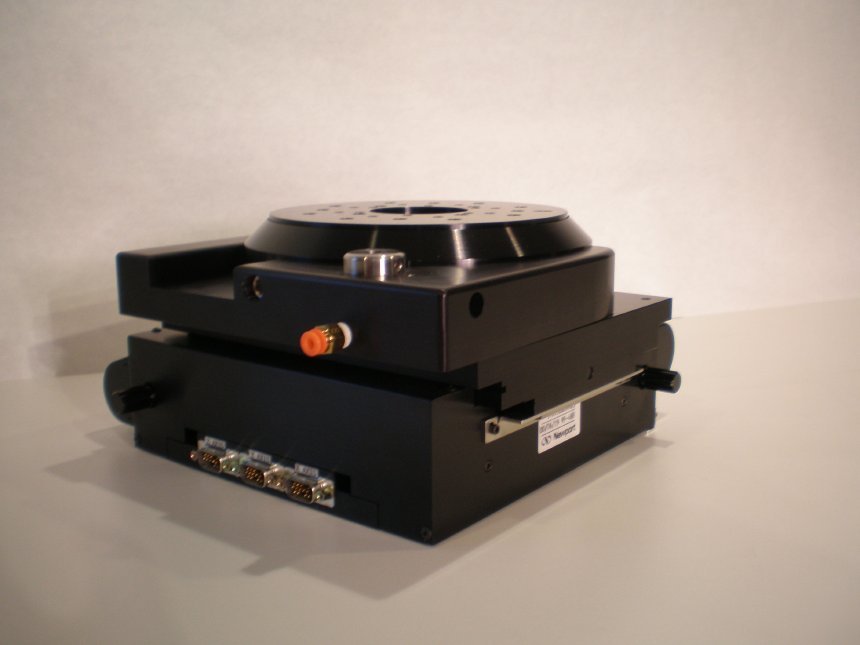

Kensington Newport PM500-33 3 axis stage w controller Kensington Newport PM500-33LR.100 With PM500-C6 controller, 3 axis cards installed, and 3 cables. Ultra-Precision 3-axis XYO Stage and PM500-C6 controller 80 mm x 80 mm XY linear stage travel (100 nm resolution) with a rotary stage (0.0003 degree resolution). Ultra-Precision XYO Stages with crossed roller bearings and glass scale encoders. These stages are manufactured in one compact package providing a precision common reference for laboratory grade quality and performance. Controller is factory tuned as a matched set for each axis for optimal dynamic performance. Controller incorporates a central CPU and dedicated motion processor on each axis card. 3 axis controller cards are installed (Controller is expandable to 6 axis). Custom cable set is provided for interfacing between the controller and stages. Controller interfaces to a PC via RS232 or GPIB. Command and operational manual is included. 7-Day money back guarantee. System is in used but like new condition. Speed range: 0.01 um/s to 100 mm/s Absolute accuracy: 0.006 degree Speed range: 0.003 to 200 degree/second Please call us at (***) 640-7709 if you have any questions. (all content is the responsibility of the poster) |
