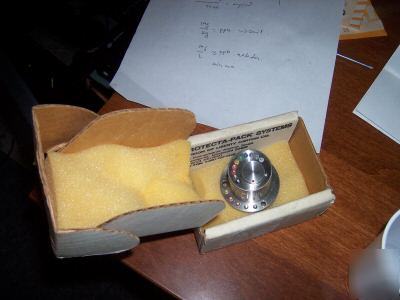

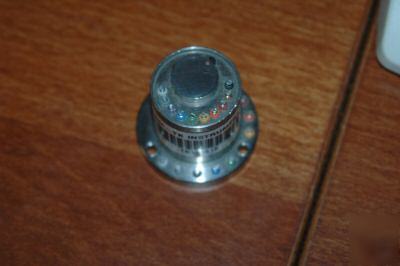

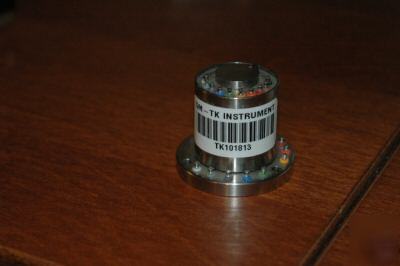

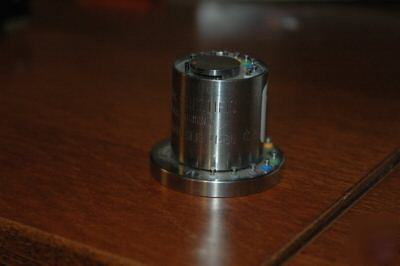

Michigan Scientific 10 Circuit Slip Ring This specific unit was never used. The contacts are untouched and the unit is absolutely clean. It is also the last one I have. Michigan Scientific's SR Series Slip Ring Assemblies are used for a variety of applications requiring 10, 20, or 36 circuit connections. They are designed to mount on the end of a rotating shaft and make electrical connections to strain gages, thermocouples, or other sensors that have been installed on rotating equipment. The slip ring brushes and rings are made of precious metals, which minimizes noise and enables the assemblies to be used for low level instrumentation signals. In addition, a high grade stainless steel case provides protection from dust and other contaminants. The SR10M model is designed with a convenient, manually operated, brush lifter to extend the life of the slip ring assembly. When it is not necessary to make electrical connection through the slip ring, the brushes can be lifted off the rings, while the slip ring continues to rotate, thus reducing the amount of wear. Connections to the slip ring assemblies are made through color coded solder terminals located on both the slip ring rotor and stator. Permanently lubricated bearings eliminate the need for routine cleaning and maintenance. The circuit options available on these slip ring models make them ideal for use in instrumentation applications where a substantial number of circuit connections are required. * Usage: Transmitting and measuring electrical signals from rotating shafts. * For strain gages, transducers, temperature sensors, and other measurement devices. * All the 10 circuits have been tested and they are performing as expected * Includes manual brush lifter to take the pressure off the contact brushes when you are not taking a measurement. * Rotating portion measures approx. 1 3/8" * Total Length approx. 1 3/4" * Base has 3 mounting holes, approx. 1/8" dia. http:// /Products/sliprings/eos/pdf/SR_series.pdf (all content is the responsibility of the poster) |
