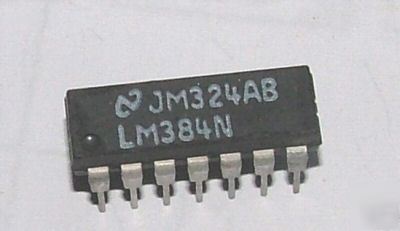

The LM384 is a power audio amplifier for consumer applications. In order to hold system cost to a minimum, gain is internally fixed at 34 dB. A unique input stage allows ground referenced input signals. The output automatically self-centers to one-half the supply voltage. High output version of LM380. The output is short-circuit proof with internal thermal limiting. The package outline is standard dual-in-line. A copper lead frame is used with the center three pins on either side comprising a heat sink. This makes the device easy to use in standard p-c layout. Wide supply voltage range: 12V to 26V High peak current capability: 1.3A Quiescent output voltage is at one half of the supply voltage Full data sheet available here; - http:// /ds.cgi/LM/LM384.pdf (all content is the responsibility of the poster) |
