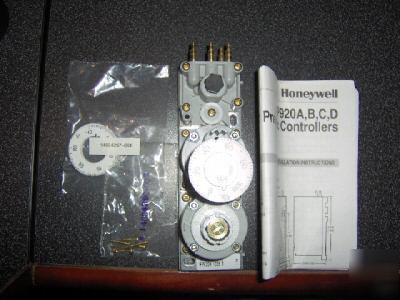

Honeywell Pneumatic receiver controller model RP920A-1025 New in box. Description Pneumatic Controller, Remote sensor, Action: Direct/reverse Application Proportional pneumatic controller Number of Sensor Inputs single Airflow Usage 0.07 scfm (33.0 mL/s) with 1 psi (7kPa) pressure drop at 18 psi (124 kPa) main air supply Capacity at 18 psi (124 kPa) MLP and 8.5 psi (59 kPa) VLP (does not include sensor usage) 0.021 scfm (10 mL/s) Maximum Operating Pressure (psi) 30 psi Maximum Operating Pressure (kPa) 205 kPa Maximum Operating Temperature (F) 130 F Maximum Operating Temperature (C) 54 C Remote Control Point Adjustment Yes Dimensions (in.) 5 7/8 in. high x 3 13/16 in. wide x 3 1/4 in. without cover x 3 3/8 in. deep with cover Dimensions (mm) 148 mm high x 96 mm wide x 83 mm without cover x 86 mm deep with cover Connections Air: Combination 5/32 in. by 1/4 in. barb optional connections to Ports 4,6,7 or 8 use 5/32 in. push-on barb 14003755-001 only Operating Humidity Range (% RH) 5 to 95% RH Input Signal (psi) 3 to 15 psi Input Signal (kPa) 21 to 103 kPa Output Pressure Range (psi) 3 to 13 psi, output signal maximum is Mainline Pressure minus 1/2 psi Output Pressure Range (kPa) 21 to 90 psi, output signal maximum is Mainline Pressure minus 7 kPa Nominal High End (kPa) 205 kPa Pressure Range (psi) 17 to 30 psi Pressure Range (kPa) 117 to 207 kPa Temperature Range (F) 40 F to 130 F Temperature Range (C) 5 C to 55 C Includes With remote control point adjustment capability. Comments Direct Acting models can be converted to Reverse Acting in the field. For more information contact Fabian at (***) 887-3572 (all content is the responsibility of the poster) |
