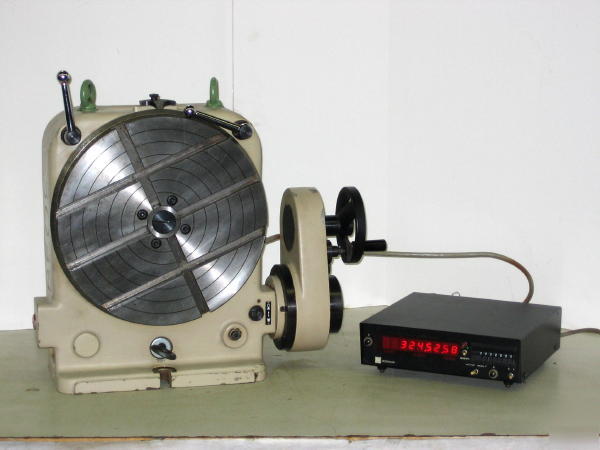

http:// /images/islogo_lg.gif Walter Precision Horizontal/ Vertical Rotary Table Walter Precision Horizontal/ Vertical Rotary Table Rotary Table Diameter: 12.5" Total Height, Horizontal Position: 7" Center Height, Vertical Position: 10.25" Maximum Table Load Capacity, Horizontal Position: 550 Lbs. Maximum Table Load Capacity, Vertical Position: 275 Lbs. Digital Readout Display Resolution: 000.00.01 Overall Dimensions: 24" x 18" x 7" Table Weight, Approximately: 234 Lbs. Indexing Accuracy, Class d-A Max. of Arc Seconds: +/- 5" Positional Accuracy, Run-out of Clamping Surface: Max. .0002" Positional Accuracy, Concentricity of Cylinder Bore: Max. .0002" Parallel Accuracy of Surface Relative to Base: Max. .00039" Rt. Angle Accuracy of Clamping Surface Relative to Base: Max. .00039" Heidenhain Digital Readout with Glass Scale All Items Subject to Prior Sale Be Sure to Verify Specs & Condition Prior to Purchasing CONTACT US: We are available to answer your calls and inquires, Monday thru Friday, 8am - 5pm, at 860.828.3541, or you can email us at tara-wilson@oklahomaselltoday.com http:// /images/building.jpg (all content is the responsibility of the poster) |
