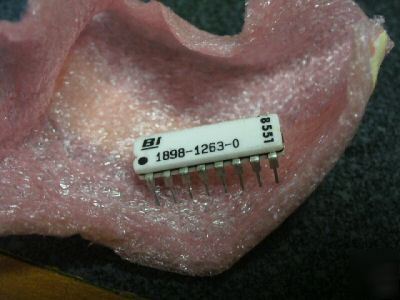

ELECTRICAL RESISTANCE - 0.100 OHMS IDENTICAL VALUE RESISTOR QUANTITY - 5 EACH RESISTOR RESISTANCE TOLERANCE IN PERCENT - -5.000 TO 5.000 POWER DISSIPATION RATING IN WATTS - 1.500 TOTAL NETWORK AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 25.0 AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 125.0 TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS - -200.0 TO 200.0 TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS - -55.0 TO 125.0 SCHEMATIC DIAGRAM DESIGNATOR - 1 ISOLATED ARRAY INCLOSURE METHOD - ENCAPSULATED STYLE DESIGNATOR - 220 DUAL INLINE BODY LENGTH - 0.830 INCHES NOMINAL BODY WIDTH - 0.270 INCHES NOMINAL BODY HEIGHT - 0.200 INCHES MAXIMUM TERMINAL TYPE - TAB, SOLDER LUG RELIABILITY INDICATOR - NOT ESTABLISHED TERMINAL LENGTH - 0.135 INCHES NOMINAL TERMINAL WIDTH - 0.020 INCHES NOMINAL TEST DATA DOCUMENT - 15280-43-055851 DRAWING III UNPACKAGED UNIT WEIGHT - 1.500 GRAMS (NON-CORE DATA) CUBIC MEASURE - 0.045 CUBIC INCHES (all content is the responsibility of the poster) |
