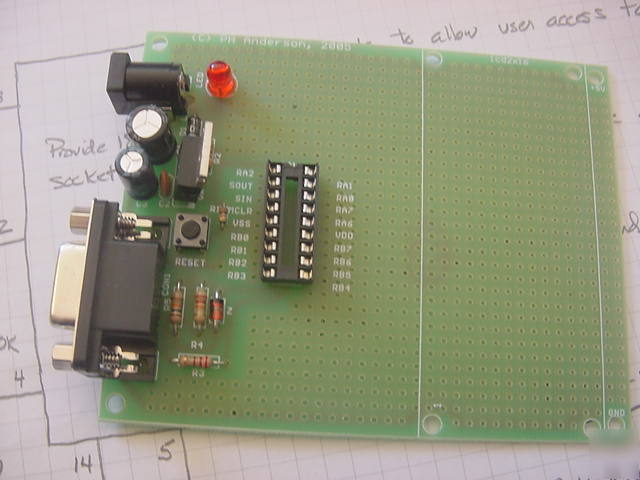

Prototyping Board - Fully assembled. For use with a PICAXE 18, -18A or 18X. * DB9 Serial Connector. Use a straight through cable from PC COM Port. * Uses the enhanced download circuitry with a Shottkey diode. * Hefty 7805 voltage regulator with LED. Anti-reversing diode. * All PICAXE terminals brought out to solder pads. * +5VDC and GRD buses run the length of the board. * Mounting holes - clearance for #4 screws. * Additional holes for mount a 2X16 LCD on spacers if desired. * Power requirement is 7-15 VDC. The connector is 2.1 mm ID x 5.5 mm OD, female, center positive. * All holes are on 0.1 inch spacing and all have solder pads. * Dimensions of the board are 4.0 X 3.19 X 0.062 inches. This listing does not include a PICAXE, serial cable or wall power unit. I have the PICAXE-18X in another listing. Please note that this is not a Rev-Ed product. * Australia, New Zealand - $3.50 (all content is the responsibility of the poster) |
